Common Intake Manifold Related Fault Codes

Compared to the hardware side of the car, I used to think it was the software issues that were the trickier ones.

Once various unrecognizable codes appeared, my first thought was to go to a professional repair store to solve the problem.

But in fact, but I went to the Internet to search and found that in fact, fault codes are really very convenient, because the code is very clear to tell us that the error is in this range.

Knowing what these trouble codes mean, what triggers them, the diagnostic steps and possible repair options can help to quickly troubleshoot the problem and get your vehicle back up and running.

Here are some common fault codes related to intake manifolds:

P0106: Manifold Absolute Pressure (MAP) Sensor/Barometric Pressure Sensor Range/Performance Problem

Fault Code Meaning

The Engine Control Module (ECM) has received a signal from the MAP (Manifold Absolute Pressure) sensor that is out of the expected range or inconsistent with the current operating conditions of the engine.

Common Causes of Triggering

MAP Sensor Malfunction:
Internal component damage within the MAP sensor causing abnormal output signals.

Wiring Issues:
Loose, corroded, shorted, or open circuit connections in the MAP sensor wiring or connector.

Intake Manifold Leaks:
Damaged intake manifold gaskets or vacuum leaks causing inaccurate pressure readings.

Carbon Buildup:
Carbon deposits inside the intake manifold obstructing pressure measurements.

Sensor Data Inconsistency:
Discrepancies between the MAP sensor readings and those of other sensors (e.g., Throttle Position Sensor or Barometric Pressure Sensor).

ECM Malfunction:
The ECM misinterpreting or improperly processing MAP sensor data (rare).

Symptoms of the Problem

Engine Performance Issues:

• Reduced power or poor acceleration.
• Idle instability or engine stalling.

Decreased Fuel Efficiency:

• Irregular air-fuel mixture adjustments leading to increased fuel consumption.

Increased Emissions:

• Higher levels of pollutants in the exhaust gases.

Dashboard Warning Light:

• The "Check Engine" light illuminates.

Throttle Response Issues:

• Noticeable lag during low-speed or full-throttle acceleration.

Diagnostic Steps

Read Trouble Codes and Freeze Frame Data:
Use an OBD-II scanner to retrieve fault code P0106 and related freeze frame data to understand the triggering conditions.

Inspect Sensor Wiring:
Check the MAP sensor's wiring and connectors for damage, corrosion, or looseness.

Measure Sensor Voltage:
Use a multimeter to verify the MAP sensor’s output signal, ensuring voltage changes appropriately with engine load (typically between 0.5V and 4.5V).

Check for Intake System Leaks:
Use a smoke tester to identify leaks in the intake horn or associated hoses.

Compare Sensor Data:
Use diagnostic tools to compare MAP sensor readings with those from the Barometric Pressure Sensor and Throttle Position Sensor.

Inspect Carbon Buildup:
If carbon deposits are suspected, remove and inspect the intake horn for obstructions, then clean as necessary.

Potential Repair Solutions

Replace MAP Sensor:
If the sensor is damaged or provides abnormal signals, replace it with a compliant MAP sensor.

Fix Wiring Issues:
Repair or replace damaged wiring, connectors, or grounding connections.

Seal Intake Manifold Leaks:
Replace faulty gaskets or repair leaks in the intake manifold.

Clean Intake Manifold:
If carbon buildup is severe, perform physical cleaning (e.g., walnut blasting) to restore airflow.

Reprogram or Replace ECM:
If the ECM misprocesses data, consider reprogramming or replacing it.

Verify and Synchronize Other Sensors:
Ensure other related sensors, such as the Barometric Pressure Sensor and Throttle Position Sensor, are functioning correctly and provide consistent data.

P0107: Low Voltage in Manifold Absolute Pressure (MAP) Sensor Circuit

Fault Code Meaning

The MAP sensor is responsible for measuring the absolute pressure in the intake manifold and relaying this data to the Engine Control Module (ECM). This information is critical for adjusting the air-fuel ratio and ignition timing. The P0107 fault code indicates that the sensor's output voltage is below the normal operating range, typically less than 0.5 volts.

Common Causes of Triggering

MAP Sensor Malfunction:
Internal damage or decreased accuracy of the MAP sensor.

Wiring Issues:
Broken, shorted, or loose connections in the MAP sensor wiring or connector.
Poor grounding or excessive resistance in the signal wire.

Power Supply Problems:
The MAP sensor is not receiving the correct supply voltage, typically 5 volts.

Intake System Problems:

1. Leaks in the intake manifold causing abnormal pressure readings.
2. Excessive carbon buildup disrupting airflow and pressure measurements.

ECM Malfunction:
The ECM is unable to properly receive or process the MAP sensor's signal (rare).

Environmental Factors:
Operating the vehicle in high-altitude areas may result in abnormal pressure readings.

Symptoms of the Problem

Engine Performance Issues:

• Unstable or rough idle, possibly leading to stalling.
• Reduced power or sluggish acceleration.

Decreased Fuel Efficiency:

• Misadjusted air-fuel ratios causing increased fuel consumption.

Emissions Problems:

• Higher levels of pollutants in the exhaust, potentially failing emissions tests.

Dashboard Warning Light:

• The "Check Engine Light" illuminates.

Compromised Driving Experience:

• Slower engine response, particularly noticeable during low-speed or high-load scenarios.

Diagnostic Steps

Retrieve Fault Codes:
Use an OBD-II scanner to confirm the P0107 code and check for any related codes (e.g., intake or ignition system issues).

Inspect Sensor Wiring:
Check the MAP sensor's wiring and connector for breaks, corrosion, or looseness.

Measure Power Supply and Ground Voltage:
Use a multimeter to ensure the MAP sensor receives a steady 5-volt power supply and has a proper ground connection (0 volts).

Test MAP Sensor Output Signal:

1. Measure the signal voltage from the MAP sensor. At idle, the normal range should be 1-2 volts.
2. During increased engine load, the voltage should rise to 4-5 volts.
3. If the voltage remains below 0.5 volts, the sensor is likely faulty.

Inspect the Intake System:

1. Use a smoke tester to identify leaks in the intake manifold.
2. Check the throttle body for carbon buildup or obstructions.

Verify ECM Functionality:
If the sensor and wiring are functioning correctly, inspect the ECM's ability to process the MAP sensor data.

Potential Repair Solutions

Replace the MAP Sensor:
If the sensor's internal malfunction is causing low voltage, replace it with a new one.

Repair Wiring Issues:
Fix or replace any damaged wiring, connectors, or ground connections. Ensure the MAP sensor consistently receives a stable 5-volt power supply.

Fix Intake System Leaks:
Repair leaks in the intake manifold gaskets or other areas of the system.

Clean the Throttle Body or Intake Manifold:
Remove carbon buildup that may be obstructing airflow or interfering with pressure measurements.

Update or Replace the ECM:
If the ECM cannot process the sensor's signal correctly, reprogram or replace it as necessary.

Address Environmental Factors:
For extreme conditions (e.g., high-altitude regions), consult the manufacturer for guidance on adjusting the sensor or ECM parameters.

P0108: High Voltage in Manifold Absolute Pressure (MAP) Sensor Circuit

Fault Code Meaning

P0108 indicates that the voltage in the Manifold Absolute Pressure (MAP) sensor circuit is higher than the specified range. This fault, also known as "Manifold Absolute Pressure/Barometric Pressure Circuit High Input," occurs when the sensor sends abnormally high voltage signals to the Engine Control Module (ECM).

Common Causes of Triggering

MAP Sensor Malfunction:

• Damage or internal short circuits in the MAP sensor resulting in excessively high voltage.

Wiring Issues:

• Signal wire shorted to the power supply (+5V).
• Loose or corroded connector pins.

ECM Issues:

• The ECM misinterprets or improperly processes the MAP sensor signal.

Intake System Problems:

• Sticking or carbon-clogged throttle body causing airflow disruptions.
• Intake manifold leaks leading to inaccurate pressure readings.

Excessively High Atmospheric Pressure:

• In low-altitude regions or under specific conditions (e.g., extreme climates), the sensor may detect unusually high pressures.

Sensor Data Inconsistency:

• Discrepancies between the MAP sensor and other sensors such as the Throttle Position Sensor (TPS), Mass Air Flow (MAF) sensor, or Barometric Pressure Sensor.

Symptoms of the Problem

Engine Performance Issues:

• High or unstable idle speed.
• Decreased power or poor acceleration.

Reduced Fuel Efficiency:

• Abnormal air-fuel ratio adjustments leading to increased fuel consumption.

Emissions Problems

• Higher exhaust pollutant levels, potentially causing failed emissions tests.

Dashboard Warning Light:

• The "Check Engine Light" illuminates.

Driving Performance Limitations:

• The vehicle may enter "safe mode," restricting engine power.

Diagnostic Steps

Retrieve Fault Codes and Freeze Frame Data:

• Use an OBD-II scanner to confirm the P0108 code and check for other related codes (e.g., throttle body or MAF sensor faults).

Inspect Sensor Circuit:

• Check the MAP sensor’s power supply (+5V), ground, and signal wires for proper functionality.
• Measure the signal voltage with a multimeter. At idle, it should be between 1-2 volts and rise to over 4.5 volts under load. If the voltage exceeds 4.5 volts, a short circuit or sensor issue is likely.

Inspect the Intake System:

• Check for carbon buildup or blockages in the throttle body.
• Inspect the intake manifold for leaks or other mechanical faults.

Compare Sensor Data:

• Use diagnostic tools to compare MAP sensor data with readings from the Throttle Position Sensor, MAF sensor, and Barometric Pressure Sensor for consistency.

Test ECM:

• If the sensor and circuit are functioning correctly, test the ECM’s ability to process MAP sensor signals.

Potential Repair Solutions

Replace the MAP Sensor:

• Replace the sensor if it produces abnormal or excessively high voltage output.

Repair Circuit Issues:

• Fix or replace shorted signal wires, corroded connectors, or loose terminals.

Clean the Throttle Body:

• Perform a thorough cleaning if the throttle body is sticking or heavily carbonized.

Repair Intake Manifold Leaks:

• Replace intake manifold gaskets or repair cracks and leaks.

Update or Replace the ECM:

• If the ECM is unable to correctly process the MAP sensor signal, reprogram or replace the ECM as necessary.

Adjust for Environmental Factors:

• For vehicles frequently operating in extreme altitudes or climates, recalibrate the MAP sensor or ECM according to the manufacturer’s recommendations.



P0171/P0174: System Too Lean (Bank 1/Bank 2)

Fault Code Meaning

• P0171: Indicates that the air-fuel mixture in the first cylinder bank (Bank 1) is too lean.
• P0174: Indicates that the air-fuel mixture in the second cylinder bank (Bank 2) is too lean.

Common Causes of Triggering

Intake System Leaks:

• Aging or damaged intake manifold gaskets causing vacuum leaks.
• Loose, cracked, or leaking vacuum hoses.
• Mass Air Flow (MAF) sensor inaccuracies leading to improper air-fuel calculations.

Fuel System Issues:

• Insufficient fuel pressure due to a failing fuel pump.
• Clogged fuel filter.
• Blocked or malfunctioning fuel injectors.

Oxygen Sensor Malfunction:

• Faulty oxygen sensor providing incorrect feedback to the ECU, leading to improper fuel adjustments.

MAF Sensor Issues:

• Dirty or defective MAF sensor causing inaccurate air intake measurements.

Exhaust Leaks:

• Leaks in the exhaust manifold or upstream exhaust system, leading to erroneous oxygen sensor readings.

PCV System Problems:

• Stuck Positive Crankcase Ventilation (PCV) valve or clogged PCV hoses.

Engine Mechanical Problems:

• Low cylinder compression or poor valve sealing.

Symptoms of the Problem

Engine Performance Issues:

• Lack of power or sluggish acceleration.
• Rough or unstable idle.

Reduced Fuel Economy:

• Irregular air-fuel mixture adjustment causing decreased efficiency.

Increased Emissions:

• Excess oxygen in the exhaust leading to higher pollutant levels.

Dashboard Warning Light:

• "Check Engine Light" illuminates.

Driving Performance Impacts:

• In some cases, the vehicle may enter "safe mode" with limited engine output.

Diagnostic Steps

Retrieve Fault Codes and Freeze Frame Data:

• Use an OBD-II scanner to read fault codes P0171 and P0174 and check for related codes, such as MAF or oxygen sensor issues.

Inspect the MAF Sensor:

• Observe real-time data from the MAF sensor to ensure readings are within the normal range.
• Clean or replace the MAF sensor if visible contamination is present.

Check for Intake System Leaks:

• Use a smoke tester to inspect the intake manifold, vacuum lines, and other components for leaks.

Inspect Oxygen Sensors and the Exhaust System:

• Monitor oxygen sensor waveforms with a diagnostic tool to ensure proper functionality.
• Inspect the exhaust system for leaks, particularly near the oxygen sensor.

Test the Fuel System:

• Measure fuel pressure to confirm the fuel pump and filter are operating correctly.
• Check fuel injectors for blockages or malfunction.

Inspect the PCV System:

• Test the PCV valve and hoses for blockages or improper operation.

Check Engine Mechanical Issues:

• If other systems are functioning normally, test cylinder compression and valve sealing.

Potential Repair Solutions

Fix Intake System Leaks:

• Replace aging or damaged intake manifold gaskets.
• Repair or replace leaking vacuum hoses.

Clean or Replace the MAF Sensor:

• Clean the MAF sensor if contamination is affecting readings; replace it if faulty.

Replace Fuel Filters or Fuel Pump:

• Address insufficient fuel delivery by replacing a clogged fuel filter or a failing fuel pump.

Replace or Repair Oxygen Sensors:

• Replace malfunctioning oxygen sensors with new units.

Fix Exhaust Leaks:

• Repair leaks in the exhaust manifold or upstream sections.

Replace or Repair PCV Valves:

• Replace stuck PCV valves or clean clogged PCV hoses.

Address Engine Mechanical Issues:

• Perform necessary repairs or replacements if low compression or valve sealing issues are identified.

P2004/P2006: Intake Manifold Control Valve Stuck (Open/Closed)

Fault Code Meaning

• P2004: Intake manifold runner control (IMRC) valve stuck in the open
• P2006: Intake manifold runner control (IMRC) valve stuck in the closed

Common Causes of Triggering

Valve Stuck:

• Carbon buildup preventing smooth valve operation.
• Mechanical wear or jamming of the valve.

Actuator or Motor Failure:

• IMRC control motor failure or internal damage.
• Damaged or detached actuator gears.

Sensor or Feedback Circuit Issues:

• IMRC position sensor unable to provide accurate valve position feedback.
• Sensor wiring shorted, open, or loose.

Intake Manifold Damage:

• Intake manifold deformation or cracks obstructing valve operation.

Vacuum System Issues (for vacuum-operated IMRC systems):

• Vacuum leaks or clogged vacuum hoses.
• Faulty vacuum control valve.

ECM (Engine Control Module) Issues:

• ECM unable to properly control or process IMRC system data (rare).

Symptoms of the Problem

Engine Performance Issues:

• Reduced power, especially at low or high speeds.
• Sluggish acceleration.

Unstable Idle:

• Engine idle may feel rough or excessively high.

Reduced Fuel Efficiency:

• Air-fuel ratio imbalance leading to increased fuel consumption.

Increased Emissions:

• Higher pollutant levels in exhaust gases, possibly causing failed emissions tests.

Dashboard Warning Light:

• "Check Engine Light" illuminates.

Diagnostic Steps

Retrieve Fault Codes and Freeze Frame Data:

• Use an OBD-II scanner to read P2004/P2006 and review the conditions under which the codes were triggered.
• Check for additional related codes, such as oxygen sensor or MAF sensor issues.

Inspect IMRC Valve Operation:

• Use diagnostic tools to test the IMRC valve's open and close functionality.
• Manually inspect the valve for carbon buildup or debris causing obstruction.

Test IMRC Motor or Actuator:

• Verify the IMRC motor's power supply and functionality.
• Check for proper mechanical connections; replace if the motor is non-functional.

Inspect Feedback from IMRC Position Sensor:

• Use a multimeter to measure position sensor feedback voltage and ensure it changes with valve movement.

Check the Vacuum System (for vacuum-operated systems):

• Use a vacuum gauge to inspect hoses and connections for leaks or blockages.

Inspect the Intake Manifold:

• Examine the intake manifold for cracks, deformation, or other physical obstructions interfering with valve operation.

Potential Repair Solutions

Clean or Replace IMRC Valve:

• Remove and clean the IMRC valve and associated channels to remove carbon buildup.
• Replace the valve if it cannot be restored to normal operation.

Replace IMRC Motor or Actuator:

• Replace the motor or actuator if damaged or unable to control the valve.

Repair Sensor or Circuit Issues:

• Replace a faulty IMRC position sensor or repair damaged sensor wiring.

Repair or Replace the Intake Manifold:

• Fix cracks or deformation in the manifold; replace if necessary.

Fix Vacuum System Issues:

• Repair or replace leaking vacuum hoses or defective vacuum control valves.

Reprogram or Replace the ECM (if needed):

• Reprogram or replace the ECM if it is found to be the root cause of IMRC control failure.

P2015: Intake Manifold Runner Control (IMRC) Position Sensor Range/Performance Issue

Fault Code Meaning

P2015 indicates a range or performance issue with the Intake Manifold Runner Control (IMRC) Position Sensor. This fault suggests that the actual position of the IMRC valve exceeds the expected range determined by the Engine Control Module (ECM), which may result from a faulty position sensor or mechanical obstruction.

Common Causes of Triggering

IMRC Position Sensor Malfunction:

1. Internal damage or erratic readings from the position sensor, leading to inaccurate feedback signals.

IMRC Valve Stuck:

1. Carbon buildup or foreign objects causing the valve to jam or move improperly.

IMRC Actuator or Motor Failure:

1. A faulty actuator motor unable to drive the IMRC valve as required.

Intake Manifold Damage:

1. Deformation or cracks in the intake manifold interfering with valve movement.

Electrical Circuit Issues:

1. Signal wire shorts, opens, or loose connections affecting the position sensor or actuator.

ECM Malfunction:

1. The ECM failing to process or control IMRC system data accurately.

Symptoms of the Problem

Engine Performance Issues:

1. Reduced power, particularly at low or high speeds.
2. Rough or unstable idle.

Decreased Fuel Economy:

1. Irregular air-fuel ratio adjustments leading to increased fuel consumption.

Increased Emissions:

1. Higher exhaust pollutant levels, potentially causing emissions test failure.

Dashboard Warning Light:

1. "Check Engine Light" illuminates.

Driving Performance Limitations:

1. The vehicle may enter "safe mode," restricting engine output.

Diagnostic Steps

Retrieve Fault Codes and Freeze Frame Data:

1. Use an OBD-II scanner to confirm P2015 and review related codes such as P2004 or P2006.

Inspect IMRC System Operation:

1. Use diagnostic tools to test the IMRC valve's open/close functionality and check for signs of sticking.

Test Position Sensor Feedback:

1. Use a multimeter or diagnostic scanner to measure the feedback voltage from the IMRC position sensor.
2. Normal voltage should range between 5V and 4.5Vat idle.

Inspect IMRC Actuator or Motor:

1. Test the motor's operation and verify that it receives adequate power and control signals.

Check Electrical Circuits:

1. Inspect wiring and connectors for shorts, opens, or corrosion in both the sensor and actuator circuits.

Check for Carbon Buildup:

1. Remove the intake manifold to inspect for and clean carbon deposits that may hinder valve movement.

Potential Repair Solutions

Replace IMRC Position Sensor:

1. Replace the sensor if it shows abnormal feedback or has failed.

Clean or Repair IMRC Valve:

1. Remove and clean the valve to eliminate carbon buildup or debris.
2. Replace the valve if it is significantly damaged.

Replace IMRC Actuator or Motor:

1. Replace the actuator or motor if it cannot properly control the valve.

Repair Electrical Circuits:

1. Fix or replace damaged wires, connectors, or signal lines.

Repair or Replace Intake Manifold:

1. Repair cracks or deformation in the intake manifold, or replace it if necessary.

Reprogram or Replace ECM (if needed):

1. If the ECM fails to correctly read or control the IMRC system, reprogramming or replacing it may be required.

P0300-P0308: Random/Specific Cylinder Misfire Detected

Fault Code Meaning

• P0300: Indicates random or multiple cylinder misfires.
• P0301-P0308: Identifies specific misfiring cylinders, with the last digit indicating the affected cylinder (e.g., P0301 for cylinder 1, P0302 for cylinder 2, and so on).

Common Causes of Triggering

Ignition System Issues:

• Damaged or worn-out spark plugs.
• Faulty ignition coils.
• Poor connections in ignition wires or connectors.

Fuel System Problems:

• Clogged or malfunctioning fuel injectors.
• Insufficient fuel pressure caused by a failing fuel pump or clogged fuel filter.
• Poor-quality fuel or fuel contamination.

Air System Issues:

• Intake manifold leaks or damaged vacuum hoses.
• Faulty Mass Air Flow (MAF) or Manifold Absolute Pressure (MAP) sensor readings.

Engine Mechanical Problems:

• Low cylinder compression due to damaged piston rings, valve seals, or valve springs.
• Timing chain or belt slack or misalignment.

Exhaust System Problems:

• Malfunctioning Exhaust Gas Recirculation (EGR) valve.
• Leaks in the exhaust manifold.

Sensor or ECM Problems:

• Erratic signals from the crankshaft position sensor or camshaft position sensor.
• ECM software or data processing errors.

Symptoms of the Problem

Engine Performance Issues:

• Reduced power and slow acceleration.
• Rough or unstable idle, possibly leading to stalling.

Reduced Fuel Economy:

• Increased fuel consumption due to inefficient combustion.

Higher Emissions:

• Unburned fuel in the exhaust, potentially failing emissions tests.

Unusual Sounds:

• "Popping" or "banging" noises during a misfire.

Dashboard Warning Light:

• "Check Engine Light" illuminates.

Diagnostic Steps

Retrieve Fault Codes:

• Use an OBD-II scanner to identify the misfire code and whether it is random (P0300) or specific to a cylinder (P0301-P0308).

Inspect the Ignition System:

• Check spark plugs for carbon buildup, burning, or wear.
• Test the ignition coils for proper operation.
• Verify the condition and connectivity of ignition wires and connectors.

Test the Fuel System:

• Measure fuel pressure to ensure it meets specifications.
• Check fuel injectors for clogs, leaks, or improper spray patterns.
• Ensure the fuel filter is clean, and the fuel pump is functioning.

Inspect the Air System:

• Use a smoke tester to check for leaks in the intake manifold or vacuum hoses.
• Test the MAF or MAP sensor to ensure accurate airflow or pressure readings.

Check for Mechanical Issues:

• Use a compression tester or leak-down tester to measure cylinder compression.
• Verify the timing chain/belt alignment.

Inspect the Exhaust System:

• Check the EGR valve for sticking or malfunction.
• Look for leaks in the exhaust manifold.

Validate Sensor and ECM Functionality:

• Test signals from the crankshaft and camshaft position sensors.
• Ensure the ECM is correctly processing data.

Potential Repair Solutions

Ignition System Repairs:

• Replace worn-out or damaged spark plugs and ignition coils.
• Repair or replace ignition wires and connectors.

Fuel System Repairs:

• Clean or replace clogged fuel injectors.
• Replace a failing fuel pump or clogged fuel filter.
• Drain and refill with high-quality fuel if contamination is suspected.

Air System Repairs:

• Repair intake manifold or vacuum hose leaks.
• Clean or replace the MAF or MAP sensor if readings are inaccurate.

Engine Mechanical Repairs:

• Address low cylinder compression by repairing piston rings or valve seals.
• Realign or replace a worn-out timing chain/belt.

Exhaust System Repairs:

• Clean or replace a malfunctioning EGR valve.
• Repair leaks in the exhaust manifold.

Sensor or ECM Repairs:

• Replace faulty crankshaft or camshaft position sensors.
• Reprogram or replace the ECM if it cannot process data properly.



P2195/P2197: Oxygen Sensor Signal Stuck Lean (System Too Lean)

Fault Code Meaning

• P2195: Bank 1, Sensor 1 oxygen sensor signal stuck lean, indicating the air-fuel mixture is too lean (too much air relative to fuel).
• P2197: Bank 2, Sensor 1 oxygen sensor signal stuck lean, also indicating a lean condition in the second cylinder bank.

These codes are triggered when the upstream oxygen sensor (Sensor 1) detects a consistent lean air-fuel ratio beyond the acceptable range. This can lead to reduced combustion efficiency and engine performance issues.

Common Causes of Triggering

Intake System Leaks:

• Aging or damaged intake manifold gaskets causing unmetered air to enter.
• Leaking or disconnected vacuum hoses.

Fuel System Issues:

• Clogged or malfunctioning fuel injectors.
• Low fuel pressure due to a failing fuel pump or clogged fuel filter.
• Poor-quality or contaminated fuel.

Oxygen Sensor Malfunction:

• A faulty or aging oxygen sensor producing incorrect readings.
• Damaged or corroded oxygen sensor wiring or connections.

MAF or MAP Sensor Issues:

• Dirty or malfunctioning Mass Air Flow (MAF) sensor.
• Erratic readings from the Manifold Absolute Pressure (MAP) sensor.

Exhaust Gas Recirculation (EGR) System Problems:

• Stuck or malfunctioning EGR valve causing increased oxygen levels in the exhaust.

Exhaust System Leaks:

• Leaks in the exhaust manifold or pipes near the oxygen sensor causing incorrect oxygen readings.

Engine Mechanical Problems:

• Low cylinder compression or improper valve sealing.

Symptoms of the Problem

Engine Performance Issues:

• Reduced power and sluggish acceleration.
• Rough or unstable idle.

Reduced Fuel Economy:

• Excessive fuel consumption due to improper air-fuel ratio adjustments.

Increased Emissions:

• Excessive oxygen levels in the exhaust causing higher pollutant emissions.

Dashboard Warning Light:

• The "Check Engine Light" illuminates.

Potential Noises:

• Hissing or whistling sounds from exhaust system leaks.

Diagnostic Steps

Retrieve Fault Codes and Freeze Frame Data:

• Use an OBD-II scanner to confirm P2195/P2197 codes and check for related codes (e.g., P0171/P0174 or MAF sensor issues).

Inspect Oxygen Sensor Signals:

• Use a diagnostic scanner to observe real-time oxygen sensor voltage. Normal readings should fluctuate between 1V and 0.9Vrapidly. Fixed lean readings indicate a problem.

Inspect the Intake System:

• Use a smoke tester to detect leaks in the intake manifold, vacuum hoses, or other components.

Test the Fuel System:

• Measure fuel pressure to ensure it meets specifications.
• Inspect the fuel injectors for clogs or improper operation.
• Check the fuel filter for blockages.

Inspect MAF/MAP Sensors:

• Clean the MAF sensor and ensure its readings match expected values for airflow.
• Verify the MAP sensor signal voltage aligns with engine load conditions.

Check the Exhaust System:

• Inspect the exhaust manifold and pipes for leaks, especially near the oxygen sensor.

Inspect the EGR System:

• Ensure the EGR valve is not stuck or excessively open, which could affect oxygen levels.

Test Engine Mechanical Integrity:

• Use a compression tester or leak-down tester to check cylinder compression and valve sealing.

Potential Repair Solutions

Fix Intake System Leaks:

• Replace damaged or aging intake manifold gaskets.
• Repair or replace leaking vacuum hoses.

Clean or Replace Oxygen Sensors:

• Replace faulty oxygen sensors if the signal is stuck or unresponsive.
• Repair damaged oxygen sensor wiring or connectors.

Fuel System Repairs:

• Clean or replace clogged fuel injectors.
• Replace a failing fuel pump or clogged fuel filter.
• Drain and refill with high-quality fuel if contamination is suspected.

Clean or Replace MAF/MAP Sensors:

• Clean dirty MAF sensors to restore accurate airflow readings.
• Replace malfunctioning MAP sensors.

Repair Exhaust System Leaks:

• Seal leaks in the exhaust manifold or pipes near the oxygen sensor.

Repair or Replace EGR Valve:

• Clean or replace a stuck or malfunctioning EGR valve.

Engine Mechanical Repairs:

• Repair low compression issues by replacing piston rings or fixing valve sealing problems.



P2070: Intake Manifold Tuning (IMT) Valve Stuck or Performance Issue

Fault Code Meaning

P2070 indicates a problem with the Intake Manifold Tuning (IMT) Valve, which is responsible for optimizing airflow to enhance engine performance under varying speeds and loads. The code is triggered when the IMT valve is stuck, moving too slowly, or fails to reach the position expected by the Engine Control Module (ECM).

Common Causes of Triggering

Valve Sticking:

1. Carbon buildup or foreign objects obstructing smooth valve operation.
2. Mechanical wear or deformation of the valve.

Actuator Failure:

1. Malfunctioning motor or vacuum control components responsible for driving the valve.

Position Sensor Malfunction:

1. Faulty sensor providing out-of-range feedback signals.
2. Wiring issues such as shorts or open circuits.

Intake Manifold Damage:

1. Cracks or deformation inside the manifold hindering valve movement.

Vacuum System Issues (if applicable):

1. Leaking or blocked vacuum hoses.
2. Faulty vacuum control valve.

ECM Malfunction:

1. Rare issues where the ECM misinterprets data or fails to control the valve properly.

Symptoms of the Problem

Engine Performance Issues:

1. Reduced power, particularly in specific RPM ranges.
2. Hesitation during acceleration or unstable idling.

Decreased Fuel Efficiency:

• Improper air-fuel ratio adjustments increasing fuel consumption.

Increased Emissions:

• Higher exhaust emissions, potentially failing emissions tests.

Dashboard Warning Light:

• "Check Engine Light" illuminates.

Driving Performance Impacts:

• The vehicle may enter "limp mode," reducing engine output.

Diagnostic Steps

Retrieve Fault Codes and Freeze Frame Data:

• Use an OBD-II scanner to confirm P2070 and check for related codes, such as P2004 or P2006.

Inspect IMT Valve Operation:

• Use diagnostic tools to test the valve's movement for sticking or sluggishness.
• Manually operate the valve to check for smooth operation.

Test Actuator Functionality:

• Measure voltage and signals to the actuator (motor or vacuum control component).
• Use a multimeter to test for electrical continuity or faults in the motor.

Check Position Sensor Signals:

• Verify sensor feedback voltage during valve operation using a multimeter or diagnostic tool.
• Confirm the signal changes with valve movement.

Inspect the Intake Manifold:

• Check for internal cracks, deformation, or carbon buildup that could hinder valve operation.

Inspect Vacuum System (if applicable):

• Use a vacuum gauge to identify leaks or blockages in hoses or vacuum control valves.

Verify ECM Control Signals:

• If mechanical and electrical systems are functional, confirm that the ECM is sending correct control signals to the valve.

Potential Repair Solutions

Clean the IMT Valve and Related Components:

• Remove carbon buildup and debris from the valve and air intake manifold.

Replace the IMT Valve:

• Replace the valve if it is mechanically damaged or cannot move properly.

Replace the Actuator:

• Replace the motor or vacuum control component if it is faulty or not driving the valve correctly.

Repair or Replace the Position Sensor:

• Replace a faulty position sensor if feedback signals are abnormal.
• Repair damaged wiring or connectors.

Repair the Intake Manifold:

• Fix cracks or deformation; replace the manifold if the damage is severe.

Repair the Vacuum System:

• Fix leaks in hoses or replace faulty vacuum control valves.

Reprogram or Replace the ECM (if needed):

• If the ECM fails to control the valve correctly, consider reprogramming or replacing it.

P2112/P2119: Throttle Control System Issues

Fault Code Meaning

• P2112: Indicates the throttle actuator is stuck in the closed position.
• P2119: Indicates a range/performance issue with the throttle control system.

These codes point to a malfunction in the electronic throttle control (ETC) system, which manages the throttle plate's position based on engine requirements. When movement is restricted or readings are out of expected parameters, the ECM triggers these fault codes.

Common Causes of Triggering

Throttle Body Carbon Buildup:

• Carbon deposits prevent the throttle plate from moving smoothly or cause it to stick.

Throttle Actuator Failure:

• Internal damage or wear in the actuator motor affecting throttle movement.

Throttle Position Sensor Failure:

• Faulty feedback from the sensor causes the ECM to misinterpret the throttle plate position.

Wiring or Electrical Issues:

• Short circuits, open circuits, or poor connections in the actuator or sensor wiring.

ECM Control Issues:

• Rare cases where the ECM fails to send or interpret throttle control signals correctly.

Mechanical Throttle Body Issues:

• Deformation or wear in the throttle body, leading to restricted plate movement.

Symptoms of the Problem

Engine Performance Issues:

• Engine fails to start if the throttle plate is completely closed (P2112).
• Reduced power or sluggish acceleration.

Irregular Idle:

• Rough or high idle due to throttle plate malfunction.

Decreased Fuel Efficiency:

• Imbalanced air-fuel ratio increases fuel consumption.

Restricted Driving Mode:

• The vehicle may enter "limp mode," reducing available engine power.

Dashboard Warning Light:

• "Check Engine Light" illuminates.

Diagnostic Steps

Retrieve Fault Codes and Freeze Frame Data:

• Use an OBD-II scanner to confirm the P2112 or P2119 fault codes and note the conditions under which they occurred.
• Look for related codes, such as those for the throttle position sensor.

Inspect Throttle Body Operation:

• Use diagnostic tools to test the throttle's open/close movement and verify smooth operation.
• Manually operate the throttle plate to check for restrictions.

Test the Throttle Actuator:

• Check actuator motor functionality by measuring power supply and signal continuity.
• Verify that the motor operates correctly without interruptions.

Check the Throttle Position Sensor:

• Use a multimeter or diagnostic scanner to monitor sensor feedback voltage.
• Confirm that the signal changes smoothly with throttle movement.

Inspect Wiring and Electrical Connections:

• Check the wiring for the throttle actuator and position sensor for shorts, open circuits, or corrosion.
• Ensure all connectors are secure and intact.

Inspect for Carbon Buildup:

• Remove the throttle body and check for excessive carbon deposits or debris obstructing movement.

Test the ECM:

• If mechanical and electrical systems are functioning, confirm that the ECM is correctly processing throttle control signals.

Potential Repair Solutions

Clean the Throttle Body:

• Use throttle body cleaner to remove carbon buildup and restore smooth plate movement.

Replace the Throttle Actuator:

• If the actuator motor is faulty, replace the entire throttle body assembly or just the motor, depending on the vehicle model.

Replace or Repair the Throttle Position Sensor:

• Replace the sensor if its feedback signals are inconsistent or incorrect.

Repair Wiring or Connections:

• Repair or replace damaged wiring, connectors, or grounding points for the throttle system.

Recalibrate the Throttle Body:

• After any repairs or replacements, use diagnostic tools to recalibrate the throttle plate position for accurate ECM control.

Reprogram or Replace the ECM:

• If the ECM fails to correctly send or interpret control signals, reprogram or replace it.

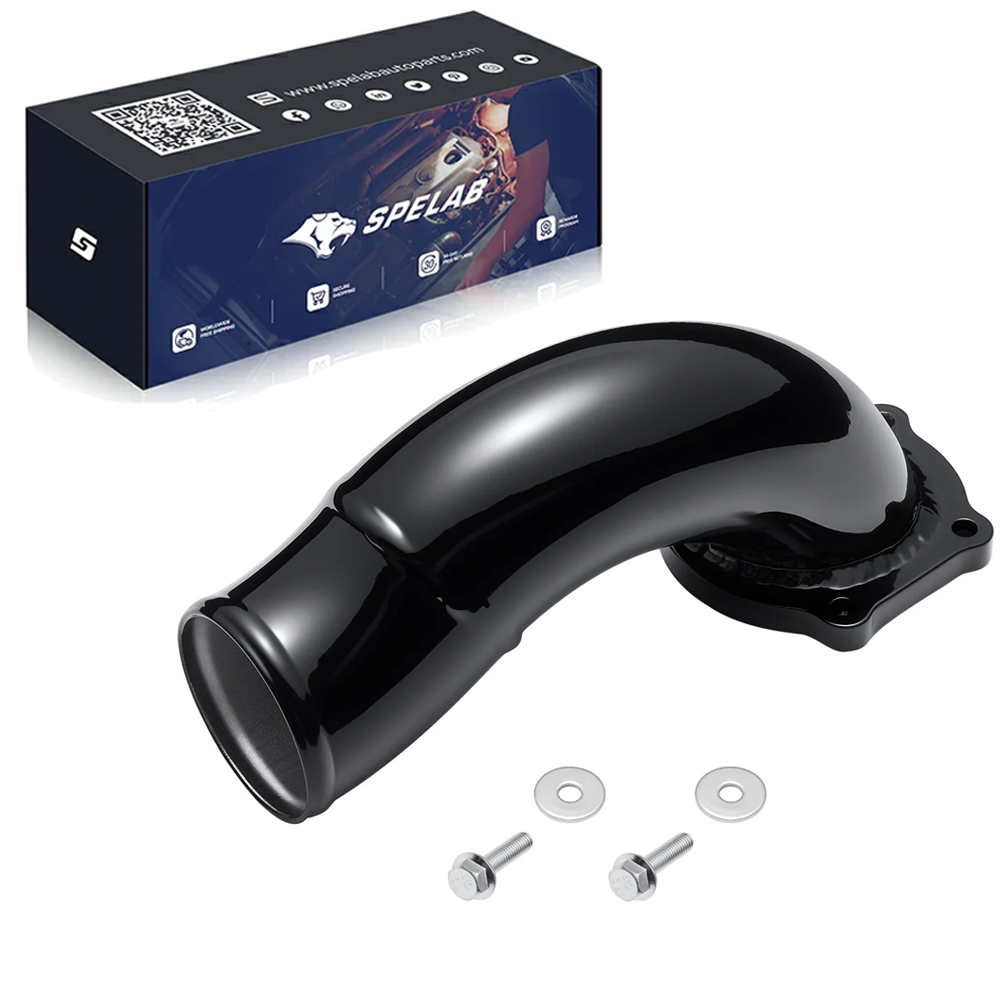

If you are considering porting a new intake horn, SPELAB is one of your best choices, both in terms of cost effectiveness and quality performance.
