What Does a Diesel Intake Manifold Do?
Air moves through the filter and intake ducting before the turbocharger compresses it. The intercooler removes part of the compression heat, and the cooled charge air then enters an intake horn, inlet elbow, throttle or air-control body, or manifold connection, depending on the engine. The manifold plenum receives that airflow, while individual runners distribute it toward the intake ports.
The engine control module uses manifold absolute pressure (MAP), intake air temperature (IAT), mass airflow, EGR position, and other available inputs to manage fueling, boost, emissions equipment, and engine protection. The exact sensors and control devices vary by model year and engine family, so a component shown on one 6.7L diesel should not be assumed to exist on another.
An intake manifold is not automatically a horsepower part. Its primary jobs are sealing and air distribution. Runner area, plenum volume, inlet size, port alignment, sensor placement, turbo airflow, cylinder-head demand, tuning, and exhaust restriction all influence whether a different manifold produces a measurable result.
Why Do Gasoline and Diesel Manifold Leaks Feel Different?
| Engine Type | Typical Operating Condition | Common Leak Clue |
|---|---|---|
| Naturally aspirated gasoline | Manifold vacuum at idle and part throttle | Rough idle, hissing, lean fuel trims, or applicable lean-condition codes |
| Turbo-diesel pickup | Pressurized charge air during acceleration, towing, and climbing | Whoosh under load, oily spray near a joint, low delivered boost, black smoke, or reduced pulling power |
This difference changes the test method. A smoke test intended to locate a gasoline vacuum leak is not automatically the right test for a diesel charge-air complaint. A turbo-diesel charge-air system is typically checked with regulated air, the correct block-off adapters, and the vehicle or tool manufacturer's pressure limit. A sensible test begins around 4–5 psi and increases only as the approved procedure allows; Ram service procedures for some 6.7L applications specify testing up to 20 psi, while the stated absolute limit can vary by year and procedure. Full shop air commonly ranges from roughly 90 to 120 psi and must never be connected directly to an assembled intake system because excessive pressure can eject a boot, damage an intercooler end tank, or cause serious injury.
Which Parts Make Up the Diesel Intake Path?
- Intake horn or inlet elbow: Directs charge air into the manifold or plenum. It is an upstream inlet component, not another name for the manifold runners.
- Plenum: Acts as the shared chamber that receives incoming charge air.
- Intake runners: Distribute air from the plenum toward the individual cylinder-head ports.
- Gaskets and O-rings: Seal the manifold, intake horn, sensors, tubes, valves, and adjoining housings.
- MAP and IAT sensors: Report pressure and temperature information used by the engine controller.
- Throttle, air-control, runner, or swirl devices: Change airflow or support EGR and shutdown strategies on engines equipped with those systems.
- EGR and crankcase-ventilation connections: Can introduce soot and oil mist that combine into sticky deposits in emissions-equipped diesel intake systems.
What Symptoms Can an Intake Manifold Problem Cause?
| Driver Complaint | Possible Intake Connection | Check Before Ordering a Manifold |
|---|---|---|
| Hiss or whoosh under throttle | Boost escaping at a flange, boot, sensor seal, or cracked housing | Turbo outlet, intercooler, CAC pipes, clamps, throttle connection, and adjoining seals |
| Low boost, black smoke, or weak towing power | Pressure leak, heavy restriction, or incorrect sensor data | Air filter, MAP sensor, VGT operation, exhaust restriction, fuel delivery, and commanded-versus-actual boost |
| Oil around an intake joint | CCV oil mist may reveal the location of a boost leak | CCV service condition, turbo seals, excessive blow-by, oil level, and charge-air boots |
| Deposits or restricted passages | EGR soot can mix with crankcase oil vapor and reduce effective passage area | EGR operation, sensor contamination, service history, and the actual depth and location of deposits |
| Coolant loss or overheating | Relevant only if that engine's manifold, gasket, or adjoining EGR hardware carries coolant | EGR cooler, hoses, thermostat housing, reservoir, water pump, oil cooler, and cylinder head |
A diagnostic trouble code should start the investigation rather than name the failed part. P0106, for example, indicates that the MAP signal is outside the expected operating relationship; it does not identify whether the cause is contamination, wiring, a pressure leak, a bad sensor, or another airflow problem. Codes such as P2004, P2006, and P2015 apply only to engines equipped with the corresponding runner-control system. Use the code definition, freeze-frame data, wiring information, and vehicle-specific test procedure together when you interpret intake-related fault codes.
Where Should You Look Before Ordering a Manifold?
Begin one connection upstream and inspect the complete air path. A split silicone coupler, loose CAC clamp, separated tube crimp, leaking sensor O-ring, or contaminated MAP sensor can imitate a failed manifold. EGR soot and crankcase oil vapor can also restrict a sound housing. Useful evidence includes a pressure drop, a stable soot or oil witness trail, visibly damaged material, or scan data that returns to normal after the leak is repaired.
The Grade-Only Boost-Leak Clue
A pinhole or weak connection may remain closed in the driveway and open only when boost, airflow, and engine movement increase with a trailer attached. If a truck holds speed empty but begins to whoosh, haze black, or lose actual boost on a sustained grade, record commanded and actual boost under safe driving conditions. Perform the regulated pressure test later with the engine off and the vehicle secured. Back out of the throttle if the leak suddenly worsens, smoke rises sharply, or a coupler begins to separate.
How Do You Confirm an Intake or Boost Leak?
- Record the evidence first. Save codes, freeze-frame data, commanded and actual boost, MAP, barometric pressure, IAT, EGR position, and other available parameters before clearing anything.
- Check sensor plausibility. With the key on and engine off, MAP should be close to local barometric pressure. Atmospheric pressure is about 14.7 psi at sea level and decreases with altitude and weather, so use local BARO data and the manufacturer's tolerance instead of assuming one universal reading.
- Compare cold-soaked temperatures. After the truck has sat long enough to reach ambient temperature, IAT and other under-hood temperature sensors should usually begin reasonably close to ambient. A difference of roughly 5–10°F may be acceptable in many cases, depending on sensor location, sun exposure, soak time, and scan-tool resolution; follow the platform procedure when the difference is larger.
- Inspect the cold engine. Look for cracks, loose fasteners, rubbed wiring, displaced seals, oily witness marks, coolant residue, soot trails, and distorted plastic or aluminum sealing surfaces.
- Test the entire charge-air path. Set the regulator to zero before connecting shop air, begin around 4–5 psi, and increase gradually only to the vehicle or tester manufacturer's limit. Some Ram 6.7L procedures use 20 psi, but that value is not universal. Secure every adapter, wear eye protection, keep clear of capped openings, and never assume that an assembled intake system can safely hold full compressor pressure.
- Inspect sealing surfaces after removal. A new gasket cannot compensate for a warped flange, gouged mating surface, debris around a port, or stripped threads.
- Verify the repair under the original condition. After the stationary leak check passes, compare scan data during the acceleration, towing, or grade condition that originally produced the complaint.
Should You Clean, Reseal, Replace, or Upgrade?
| Action | When It Makes Sense | Main Caution |
|---|---|---|
| Clean | Deposits are confirmed, the housing is sound, and sensors or actuators can be serviced safely | Do not loosen heavy carbon over open intake ports or damage plastic, coatings, seals, sensors, or actuators |
| Reseal | Testing confirms leakage at a gasket or O-ring and both mating parts remain flat and undamaged | Use the exact gasket, sequence, fastener condition, and torque specification for the engine and selected hardware |
| Replace | The manifold is cracked, warped, stripped, heat-damaged, or has a failed integrated mechanism that is not serviceable separately | Correct excess boost, installation stress, worn mounts, line interference, or an adjoining failure before fitting the replacement |
| Upgrade | A stronger housing, larger inlet, added sensor ports, improved service access, or system-level airflow change solves a defined need | A larger manifold alone does not guarantee a fixed horsepower, MPG, EGT, throttle-response, or towing improvement |
A 10 mm Socket Is Not a Torque Specification
The same socket can fit a hose clamp, a plastic-housing fastener, and hardware supplied with an aluminum manifold, but those joints may require very different torque. Confirm whether a published value is in lb-in, lb-ft, or N·m; confusing 89 lb-in with 89 lb-ft would apply roughly twelve times the intended torque. Use current vehicle service information and the instructions supplied with the exact manifold instead of transferring a forum value across engines or kits.
There is no universal 30,000-mile or 50,000-mile intake-manifold cleaning interval for every diesel. Cleaning need depends on EGR strategy, CCV condition, duty cycle, idle time, oil consumption, sensor data, and measured deposits. When restriction is confirmed, follow a process designed to clean diesel intake deposits safely without pushing loosened material into an open port.
If the leak is at a flange rather than in the housing, confirm an intake manifold gasket leak before buying the complete assembly. A new manifold will not repair a scratched mating surface, pinched O-ring, incorrect gasket, damaged fastener, or uneven tightening.
Is Aluminum Better Than an OEM Composite Manifold?
Composite manifolds are light, transfer less engine-bay heat into the intake air, and can incorporate complex molded passages. Repeated heat cycles, aged material, damaged inserts, installation stress, and platform-specific weak seams can still cause cracking or distortion. Those risks justify inspection, but they do not prove that every factory composite manifold is about to fail.
Cast aluminum provides rigid flanges, durable threads, and greater resistance to some impact and pressure-related failures. It also weighs more, conducts heat faster, and still depends on sound casting, machining, port alignment, gasket support, and installation. An aluminum replacement is rational when it corrects a confirmed failure or supports a defined reliability, service-access, or airflow goal; it cannot fix a leaking CAC boot, bad sensor, or turbo-control problem beside it.
How Do Cummins, Power Stroke, and Duramax Intake Systems Differ?
| Platform | Common Intake Concern | Useful First Check |
|---|---|---|
| Ram 6.7L Cummins | Intake-horn sealing, MAP contamination, EGR/CCV deposits, and platform-specific grid-heater hardware | Inspect the horn flange, boots, MAP data, heater terminal, fault history, and exact year-specific layout |
| Ford 6.7L Power Stroke | CAC outlet-tube separation, charge-air connections, composite-manifold damage, and year-specific line clearance | Inspect the CAC outlet, throttle-body connection, crimp clamp, manifold seams, sensor data, and nearby lines |
| GM 6.6L Duramax | Generation-specific Y-bridge joints and seals, intake boots, manifolds, and charge-air connections; some LLY, LBZ, and LMM layouts can leak or separate at the bridge connection under boost | Identify the engine code, expose the joint, and pressure-test the system before choosing O-rings, a bridge repair, or replacement hardware; LB7 through L5P do not share one universal intake path |
What Is the 6.7 Cummins Grid-Heater Risk?
Owners often call a loose or deteriorated Ram grid-heater connection the “grid heater bolt failure” or “killer grid heater bolt,” and the informal “wiggle test” refers to checking whether the power terminal has developed movement. Those terms describe a feared outcome, but they should not be used to merge every loose-terminal, overheated-joint, or stuck-relay condition into one diagnosis. Cummins service information for certain ISB6.7 and B6.7 applications documents a specific sequence in which an intake-air-heater relay remains closed, the heater stays energized without normal airflow, and excessive heat damages the insulated power connection or internal joints. In severe documented cases, arcing can create debris that enters the intake. That service information supports careful inspection of affected hardware, but it does not prove that every Ram 6.7L Cummins has the same failure or that every owner needs a heater delete.
Check the exact engine and heater design, heater-related faults, battery-drain history, terminal movement, deformation, and heat or arcing evidence using the correct service procedure. If the horn or heater arrangement is changed, preserve required sensor functions and plan for cold starts. A configuration that starts acceptably in a mild climate may crank longer, smoke more, or place greater demand on the batteries and starter when the truck sits below roughly 20°F, depending on oil viscosity, battery condition, compression, calibration, and heater capacity.
Owners comparing a stock-style repair with a larger horn should base their 6.7 Cummins intake-horn decision on climate, truck year, heater requirements, emissions configuration, airflow goals, and the exact parts included with the kit.
Why Is P0299 on a 6.7 Power Stroke Not Proof of a Cracked Manifold?
P0299 means delivered boost was below the calibrated expectation when the code criteria were met; it does not identify the leaking component. Ford TSB 19-2143 specifically covers certain 2011–2016 F-Super Duty trucks with the 6.7L diesel, lack of power, and only P0299 stored. Ford traced that condition to a CAC outlet tube disconnected at the throttle body or separated at its crimp clamp, so those connections should be inspected before the composite manifold is condemned.
A cast-aluminum replacement becomes a reasonable choice when testing confirms a cracked or warped housing, damaged threads, repeated sealing trouble, or a defined durability and service-access goal. Product-specific hardware varies by year, and some 2015–2016 replacement configurations require special attention to the turbo oil-feed-line arrangement. A 6.7 Power Stroke manifold comparison should therefore be used together with the live kit instructions and the truck's build information.
Match the Replacement Hardware to the Truck
The diesel intake manifold collection is the appropriate starting point after the failed part and engine platform have been confirmed.

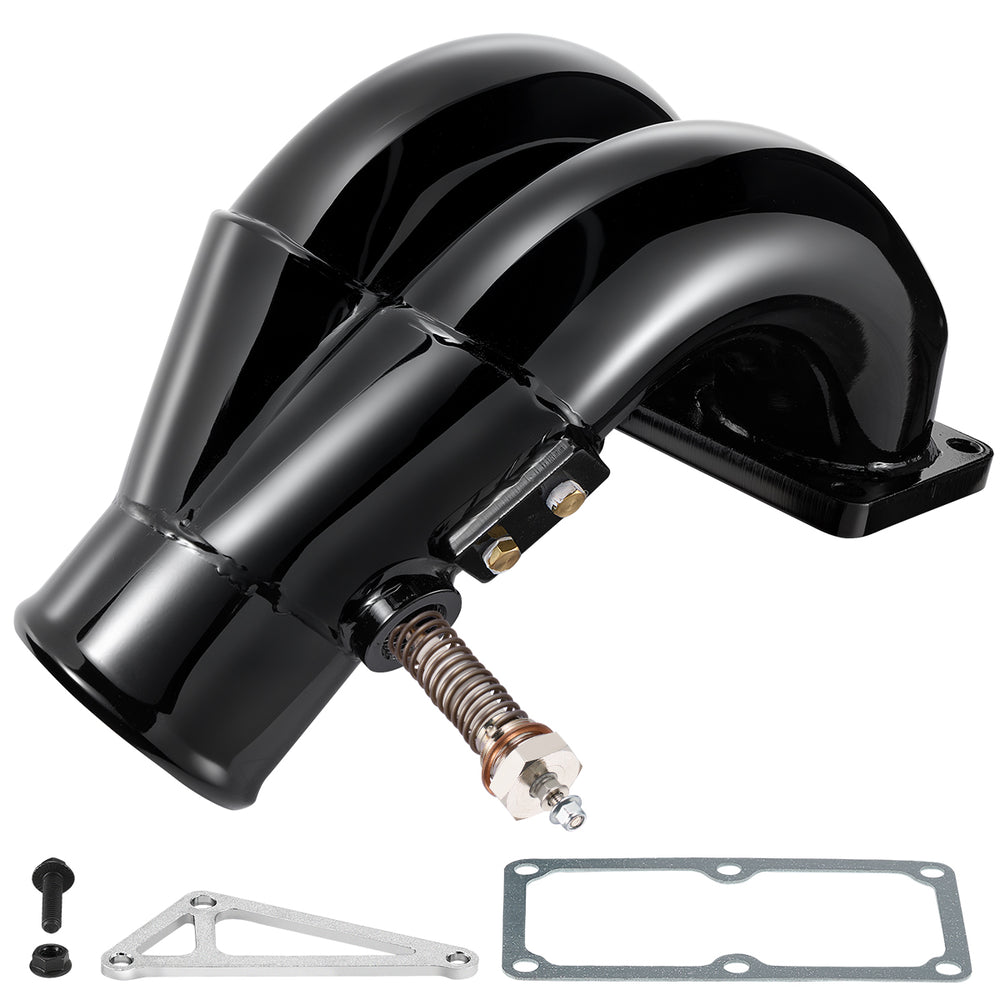

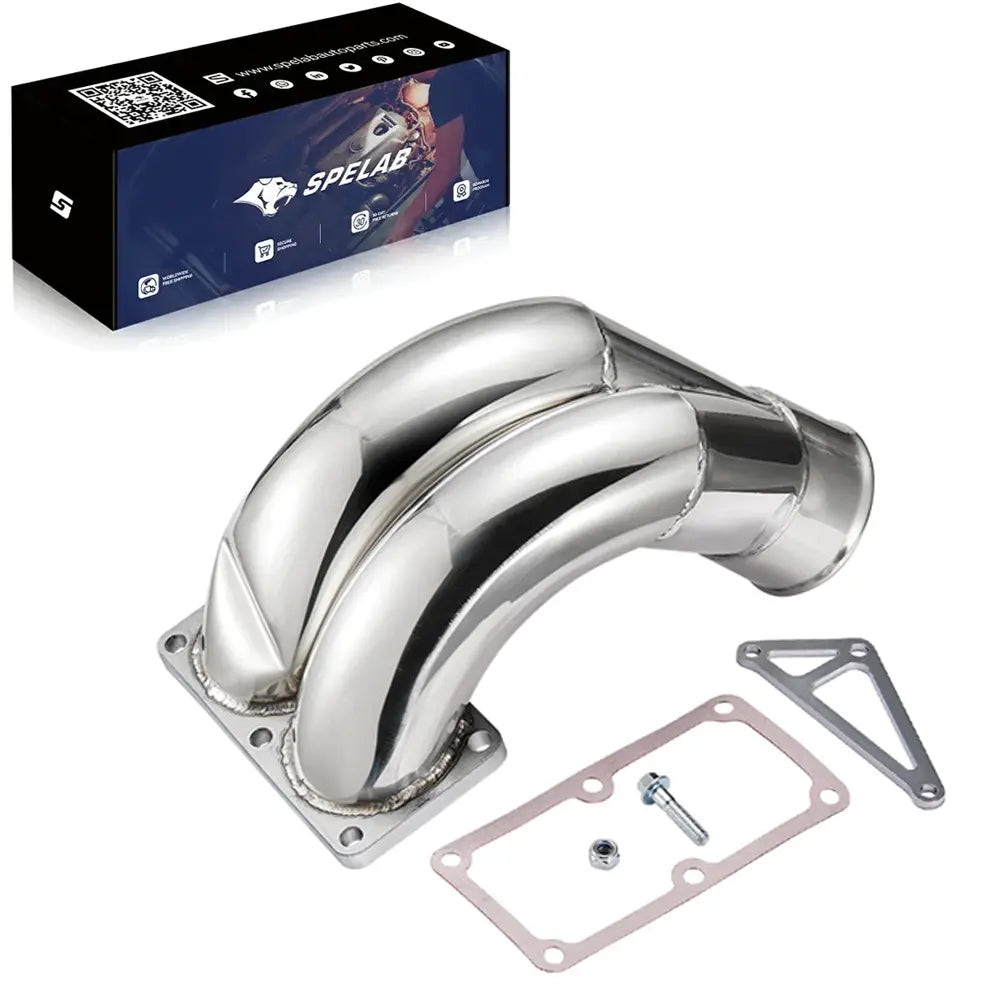

- 3.5-inch intake manifold kit for 2007–2018 Ram 6.7L Cummins: compare the selected manifold, intake horn, grid-heater option, sensor ports, emissions configuration, and included hardware before ordering.

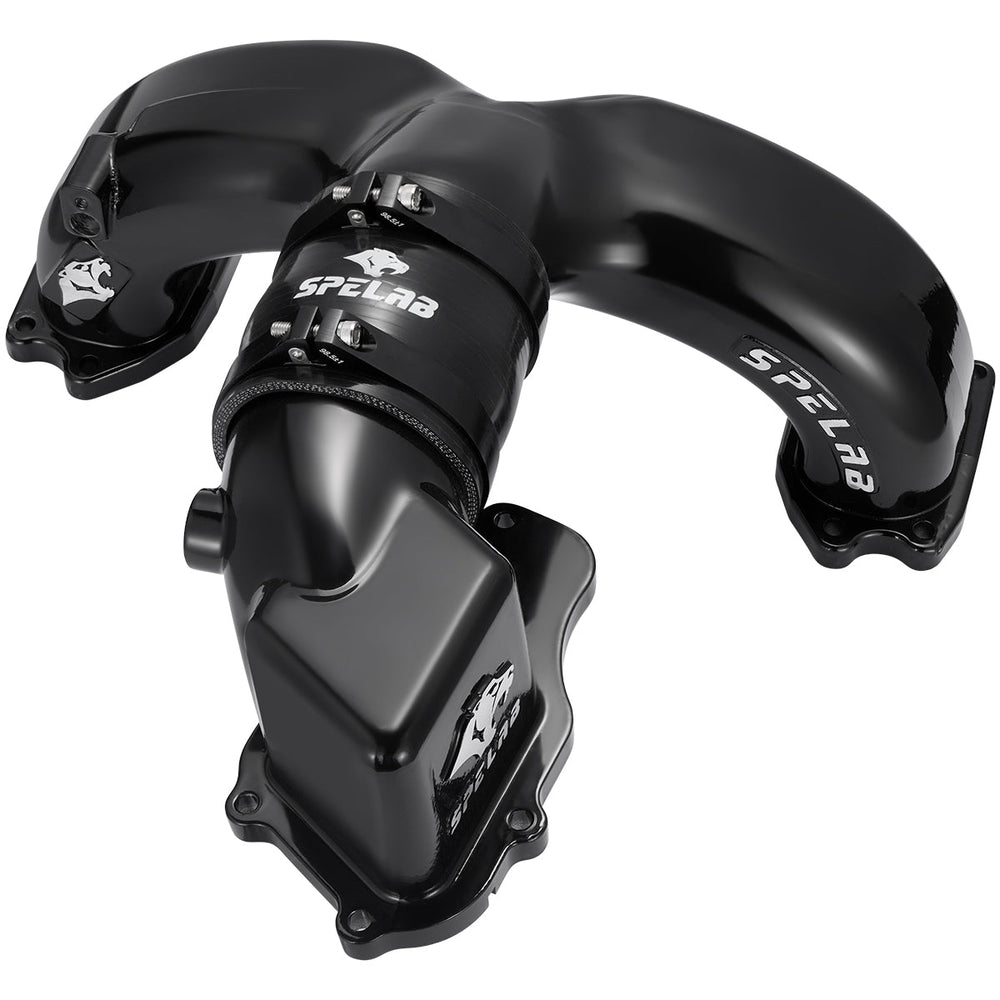

- aluminum intake manifold for 2011–2019 Ford 6.7L Power Stroke: verify the truck year, nearby-line clearance, oil-feed-line requirement, gaskets, and installation hardware before teardown.
These are conditional fitment examples, not universal repairs. Confirm the leak or restriction first, then verify the live product description, selected variant, engine year, emissions equipment, sensor arrangement, vehicle configuration, and local requirements.
Frequently Asked Questions
Does P0299 prove that a 6.7 Power Stroke intake manifold is cracked?
No. P0299 reports lower-than-expected boost under the code's enabling conditions, but it does not name the failed component. On applicable 2011–2016 trucks, inspect the CAC outlet tube, throttle-body connection, crimp clamp, intercooler plumbing, turbo operation, and sensor data before replacing the manifold.
What should I inspect around a 6.7 Cummins grid heater?
Check the exact heater design, applicable fault history, battery-drain symptoms, terminal movement, deformation, and evidence of heat or electrical arcing. Disconnect the batteries and follow the engine-specific service procedure before touching high-current heater hardware.
Is an aluminum intake manifold always better than a composite manifold?
No. Aluminum provides rigid flanges and durable threads, while composite is lighter and transfers less heat. The better choice depends on the confirmed failure, casting or molding quality, port alignment, seals, sensor placement, line clearance, duty cycle, and installation quality.
What causes a Duramax Y-bridge to leak or separate?
On applicable LLY, LBZ, and LMM layouts, aged seals, oil contamination, joint movement, installation condition, and higher boost can contribute to leakage or separation at the Y-bridge connection. Confirm the engine code and pressure-test the exposed joint before deciding whether seals, adjoining pipework, or the bridge itself requires replacement.
Can I keep towing with a suspected boost leak?
Avoid another heavy pull until the leak is located. A boost leak reduces the air mass reaching the cylinders and can increase smoke, exhaust temperature, turbocharger workload, and aftertreatment soot loading when fueling and load remain high. The amount of EGT increase depends on leak size, calibration, commanded fueling, altitude, gear, and trailer weight, so 1,500°F cannot be treated as a universal threshold or inevitable result. Reduce load and stop safely if delivered boost falls sharply, smoke rises, temperature climbs, a coupler begins to separate, or the truck cannot maintain road speed safely.
Do all Duramax engines use the same intake manifold and leak test?
No. Duramax generations from LB7 through L5P use different intake, EGR, sensor, bridge, and charge-air arrangements. Identify the engine code and model year before selecting block-off adapters, seals, torque values, cleaning methods, or replacement parts.
Make the Repair Match the Evidence
Listen to when the symptom appears, record what the sensors report, and test the complete air path in the same operating range. An idle complaint, a grade-only whoosh, a grid-heater terminal concern, heavy EGR deposits, and a cracked housing are different jobs even when owners describe all of them as an intake problem. The correct repair is the one supported by pressure data, visible evidence, exact fitment, safe installation, and a verification run after the work is complete.
