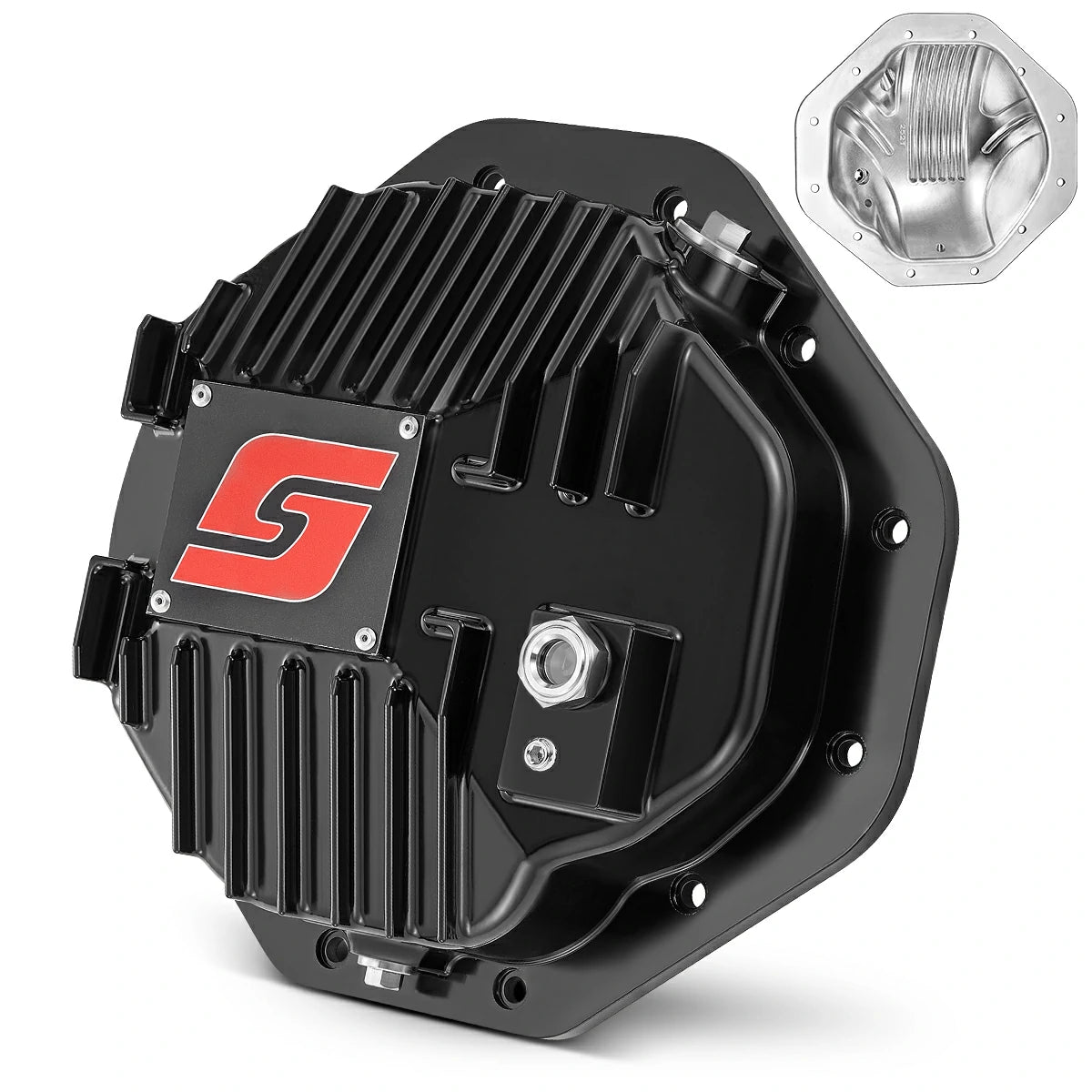

Differential Cover For Chrysler 9.25'' 12 Bolts Rear Axle| SPELAB
Function:
Protects the differential, seals the differential, stores differential fluid.
Fitment:
Chrysler 9.25″:
1973-1974 | Dodge Challenger
1968-1979 | Dodge Charger
1974-& Up | Dodge W100/W150
1974-& Up | Dodge W200/W250
1974-& Up | Dodge D300/D350
1974-& Up | Dodge Ramcharger
1997-2009 | Dodge Dakota v8
1998-2009 | Dodge Durango
1994-2010 | Dodge RAM 1500
1994-2000 | Dodge RAM 2500

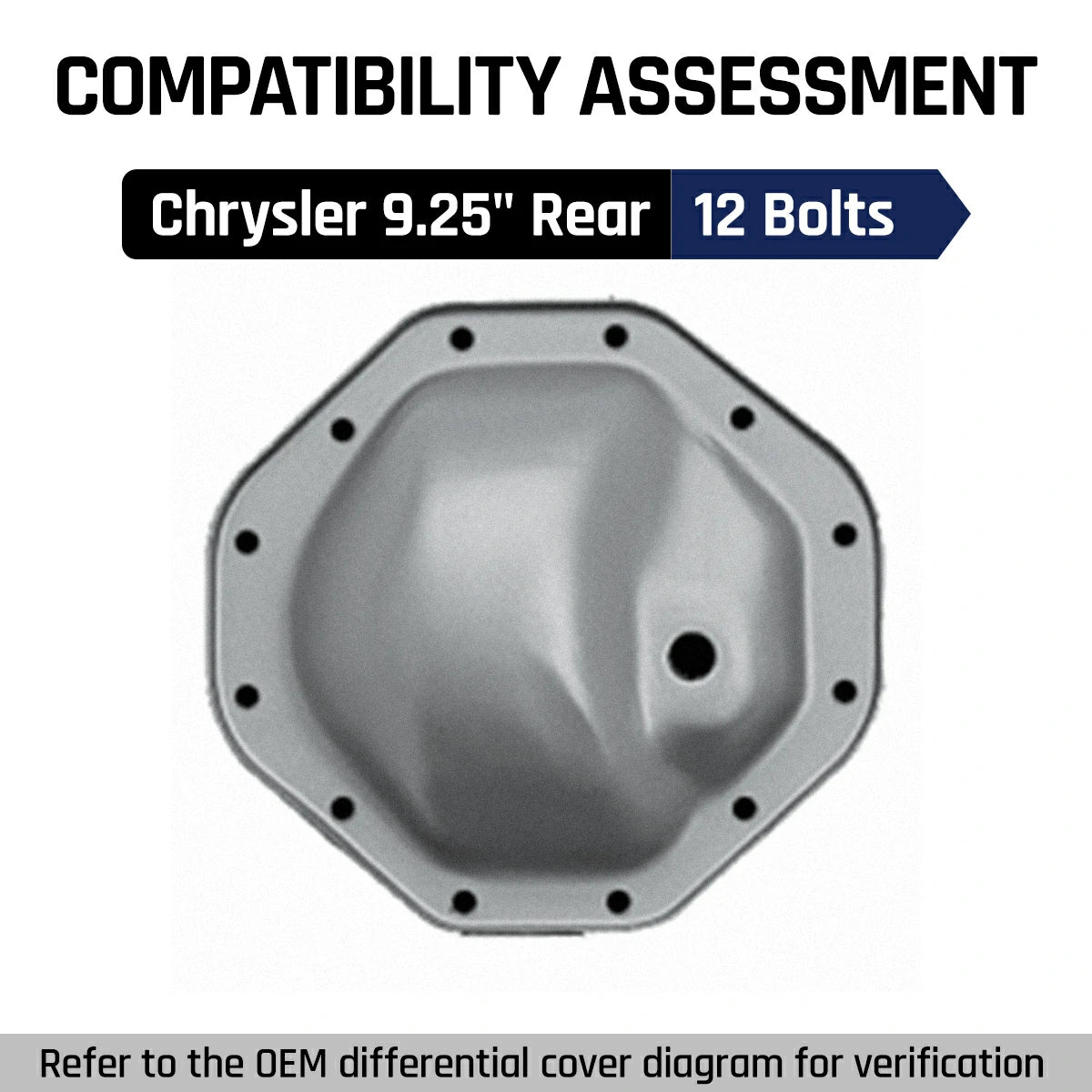

Note: The year and model may not guarantee compatibility. Please confirm whether the axle is Chrysler 9.25'' 12 Bolts .
CHRYSLER 9.25 REAR AXLE – GENERIC EXPLODED VIEW
Innovative points:
1. The external heat sink design increases the contact area between the differential cover and the surrounding air, enhancing heat dissipation performance.
2. The internal diversion groove design aligns with the direction of liquid flow in the differential gear's rotation, ensuring maximum flow rate for better lubrication.
3. The use of aluminum alloy material significantly improves cooling performance compared to the commonly used iron material. When comparing billet to cast products, billet items are often considered more durable and built for long-lasting performance.
4. An external observation mirror with a floating ball is used to monitor the oil level. Traditional observation mirrors in the market may darken over time, reducing visibility. Therefore, the floating ball allows us to monitor the oil level even if the mirror darkens.
5. The outside with black wrinkle paint providing rust resistance.
Specifications：
Q1: What materials is the SPELAB chrysler 9.25 diff cover made of?
A1: The SPELAB differential cover is made from A380 aluminum, offering superior strength and cooling performance.
Q2: How does the SPELAB chrysler 9.25 differential cover improve cooling?
A2: The cover features external cooling fins (534 sq. inches) and internal heat fins (120 sq. inches), ensuring optimal heat dissipation and enhanced cooling.
Q3: Where are the drain and fill ports located on the SPELAB differential cover, and how should they be used?
A3: The drain port is located at the bottom of the cover for easy fluid drainage, and the fill port is positioned on the side. Fluid should be added to the manufacturer's recommended level to prevent overfilling or underfilling.
Q4: Is it necessary to use specific gasket or sealant brands for installation?
A4: Yes, it is recommended to use high-quality silicone sealants such as Permatex Ultra Black or the manufacturer’s specified gasket to ensure a durable and effective seal.
Q5: Does the design of the differential cover affect ground clearance? If so, how much?
A5: The design increases the cover thickness by approximately 0.5 inches but does not significantly impact ground clearance, making it suitable for daily driving and light off-road use.
Q6: How does the additional support or rigidity protect internal components?
A6: The reinforced rib design minimizes stress on the differential housing caused by external impacts, preventing deformation and extending the lifespan of gears and bearings.
Q7: How often should fasteners be checked or fluid be replaced?
A7: Fasteners should be checked for proper torque every 5,000 to 10,000 miles, and differential fluid should be replaced every 30,000 to 50,000 miles, depending on driving conditions.
Q8: Will installing this differential cover void the vehicle warranty?
A8: According to the Magnuson-Moss Warranty Act, installing this differential cover will not automatically void the vehicle warranty. However, issues caused by the modification may not be covered.

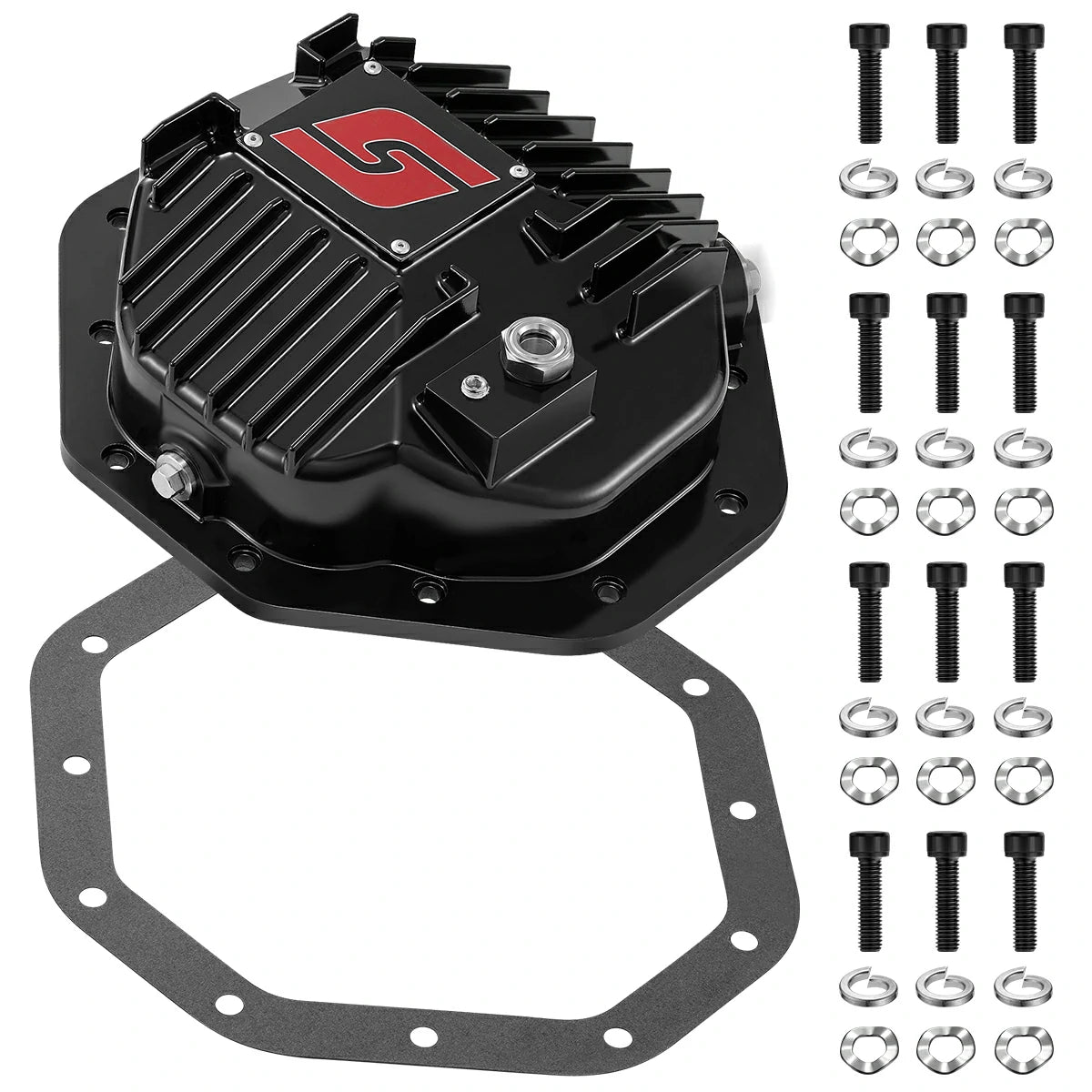

Q9: Does the SPELAB differential cover come with all necessary hardware for installation?
A9: Yes, the cover typically includes mounting bolts and a gasket, but it is recommended to use high-quality sealant for optimal sealing.
Q10: Can the SPELAB differential cover be installed by DIY enthusiasts?
A10: Yes, the differential cover can be installed by most DIY enthusiasts with basic mechanical skills. However, following the manufacturer's torque specifications and guidelines is essential for proper installation.
