Intake Manifold Ford Small Block Carbureted Dual Plane | SPELAB

Regular price $208.00
Quantity In stock
Secure and trusted checkout with
paypalvisaapple paymasteramerican expressdiscoverjcbdiners clubgoogle pay
  • Brand: SPELAB
  • SKU: SPIS08533
  • Availability: Many in stock
  • Product Type: Intake Manifold

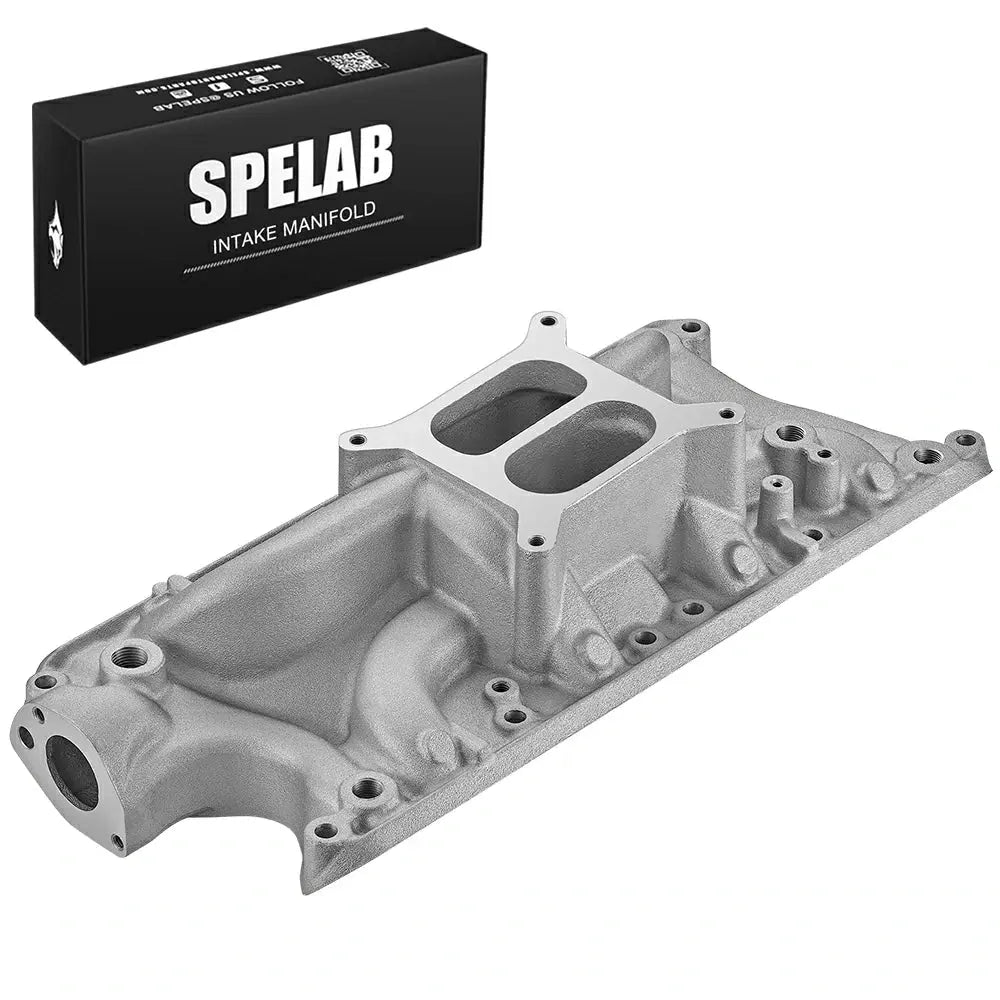

Intake Manifold Ford Small Block Carbureted Dual Plane | SPELAB

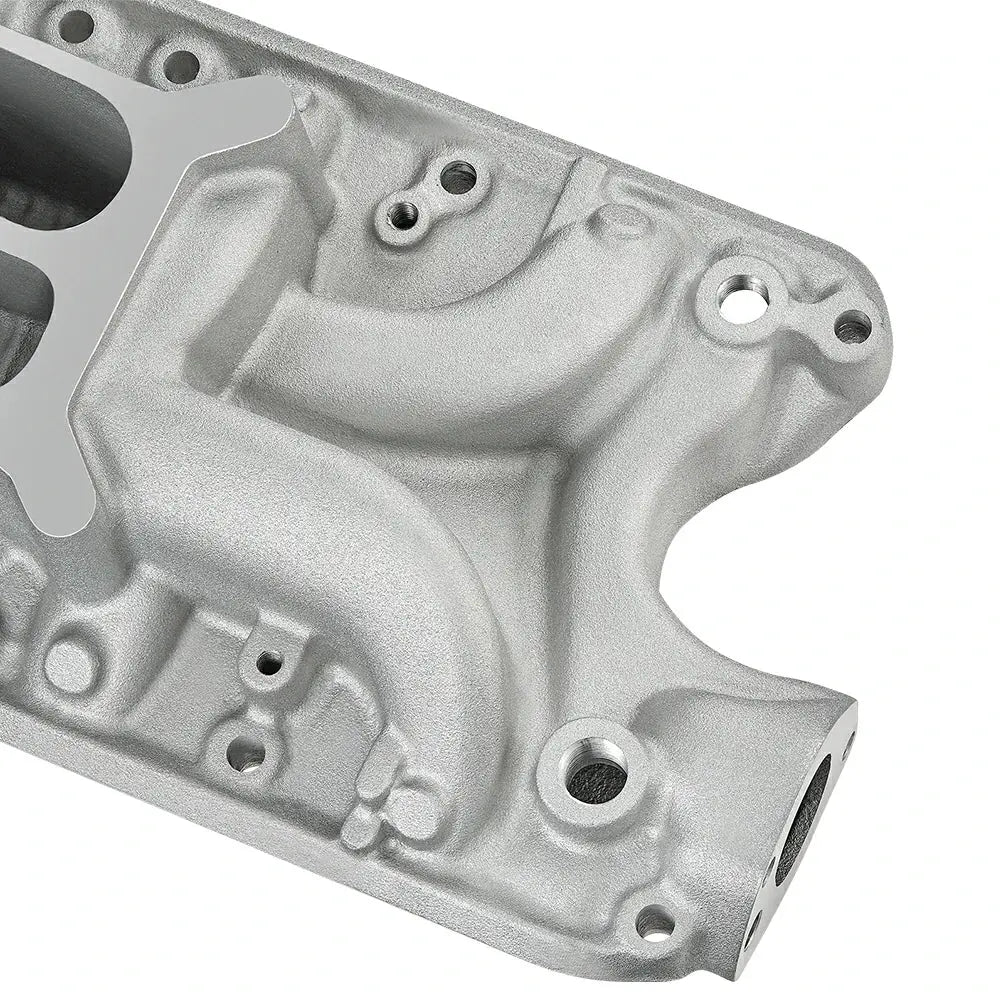

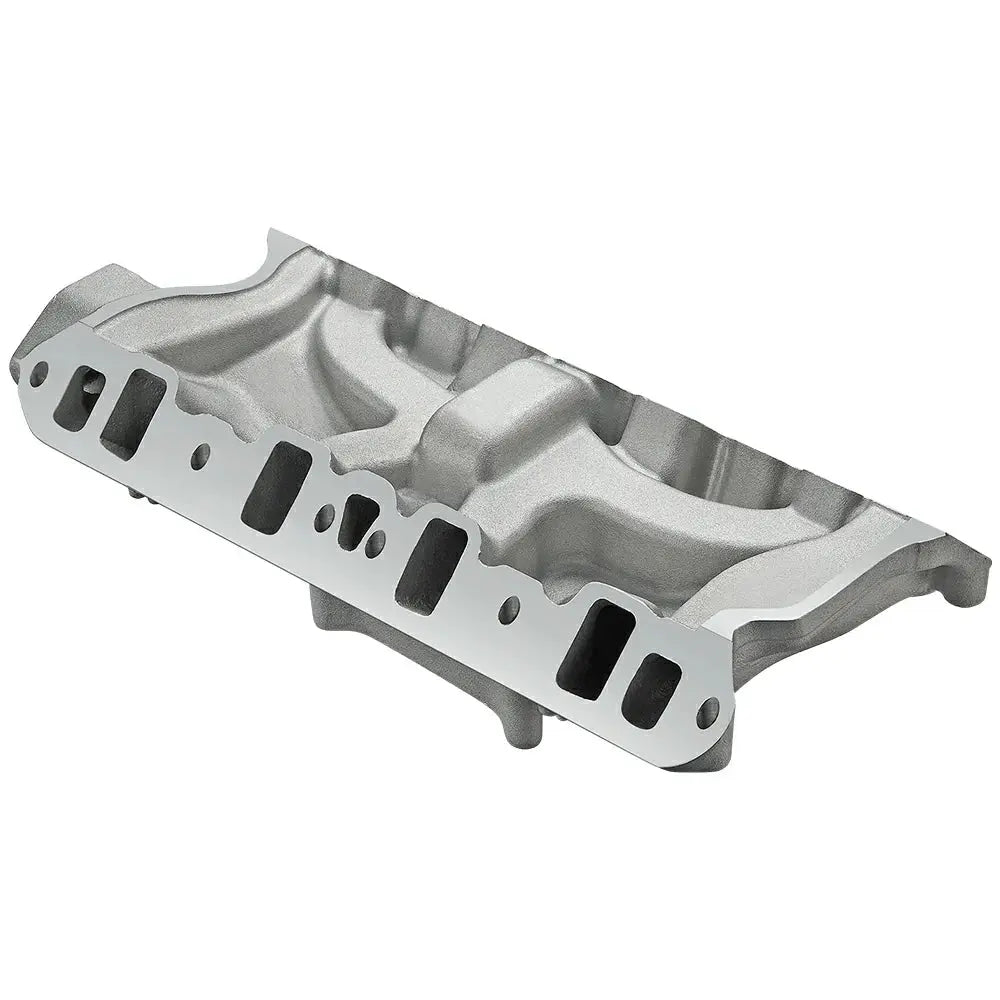

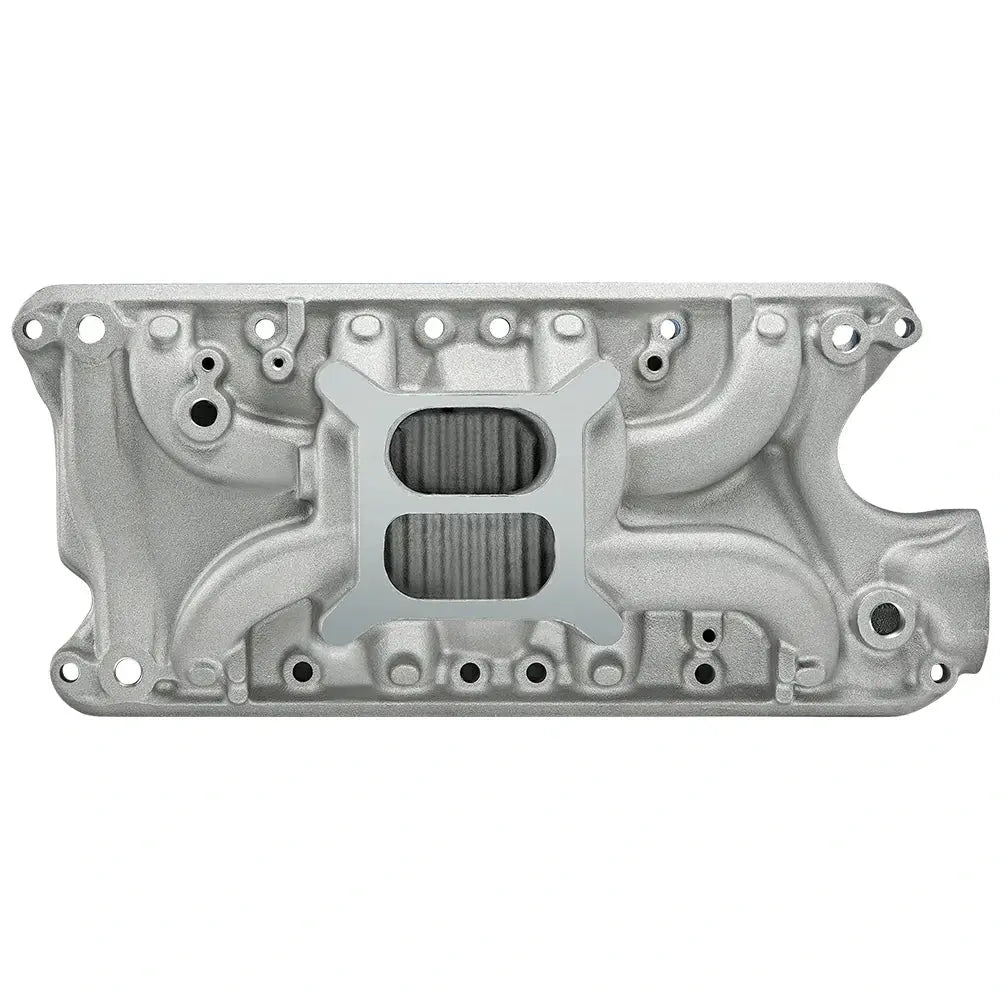

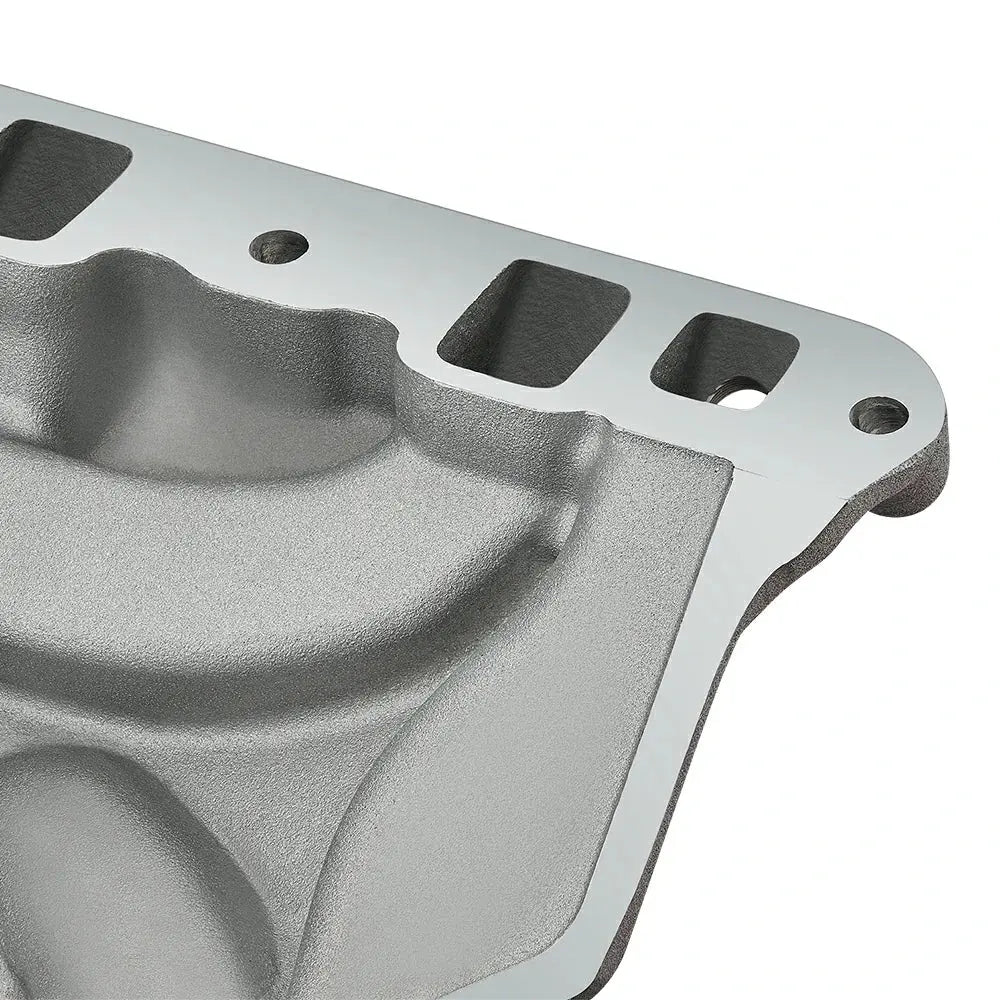

SPELAB's dual-plane high-performance intake manifold for the small block Ford is ideal for street performance applications. With a design that improves throttle response, as well as power and torque over a wide rpm range - 1,500 to 6,500. It is cast from lightweight aluminum and features a low profile for ideal hood clearance. Additional provisions include nitrous bosses, a rear water crossover with additional ports, and a square bore carburetor flange.

  • Fits Ford small block 221, 260, 289, and 302 engines
  • Features dual-plane design with a black finish

Specifications

ENGINE BLOCK STYLE OEM Standard Deck
CARBURETOR QUANTITY 1
INTAKE STYLE Dual Plane
BASIC OPERATING RANGE 1,500 to 6,500 RPM
MANIFOLD HEIGHT 4.12"
MANIFOLD MATERAL Aluminum
MANIFOLD FINISH Satin
EGR No

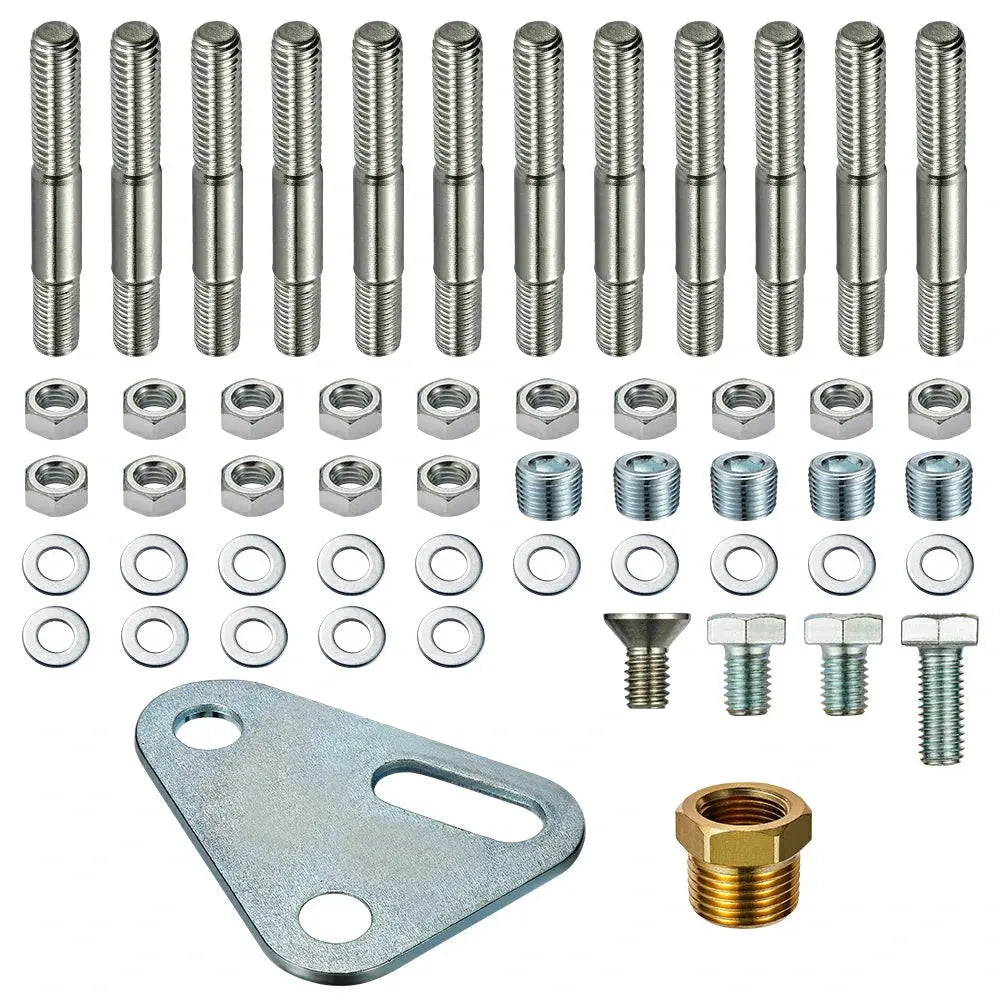

INCLUDED Mounting Hardware
Water Port Block-offs
EGR Adapter
Throttle Bracket Adapter Plate Kit


Fitment

FORD SMALL BLOCK WINDSOR V8

  • 4.3 L / 260 in3
  • 4.7 L / 289 in3
  • 4.9 L / 302 in3 generally referred to as 5.0 L

NOTES

  • Will not fit 255, Boss 302, or 351W

ALERT

Q1: Which Ford engines are compatible with the SPELAB Dual Plane Intake Manifold?
A1:
The SPELAB Dual Plane Intake Manifold is compatible with Ford small block Windsor V8 engines, including 260 (4.3L), 289 (4.7L), and 302 (4.9L, commonly referred to as 5.0L) engines. It will not fit the 255, Boss 302, or 351W engines.


Q2: What is the basic operating RPM range for the SPELAB Dual Plane Intake Manifold?
A2:
The SPELAB Dual Plane Intake Manifold is best suited for the 1,500 to 6,500 RPM range, making it ideal for street performance applications. It enhances throttle response, power, and torque over a wide RPM spectrum.


Q3: What special provisions does the SPELAB Dual Plane Intake Manifold include?
A3:
The SPELAB Dual Plane Intake Manifold includes several beneficial provisions:

  • Nitrous bosses for nitrous system integration.
  • Rear water crossover with additional ports for more balanced cylinder head temperatures.
  • Square bore carburetor flange for compatibility with popular carburetors.

Q4: Is the SPELAB Dual Plane Intake Manifold street legal?
A4:
The SPELAB Dual Plane Intake Manifold is legal for off-road use and non-pollution-controlled vehicles (1965 and older). However, it is not approved by the California Air Resources Board (CARB) for use on highway vehicles in California or other states with similar emissions regulations.


Q5: What accessories are included with the SPELAB Dual Plane Intake Manifold?
A5:
The SPELAB Dual Plane Intake Manifold comes with the following accessories:

  • Mounting hardware
  • Water port block-offs
  • EGR adapter
  • Throttle bracket adapter plate kit
