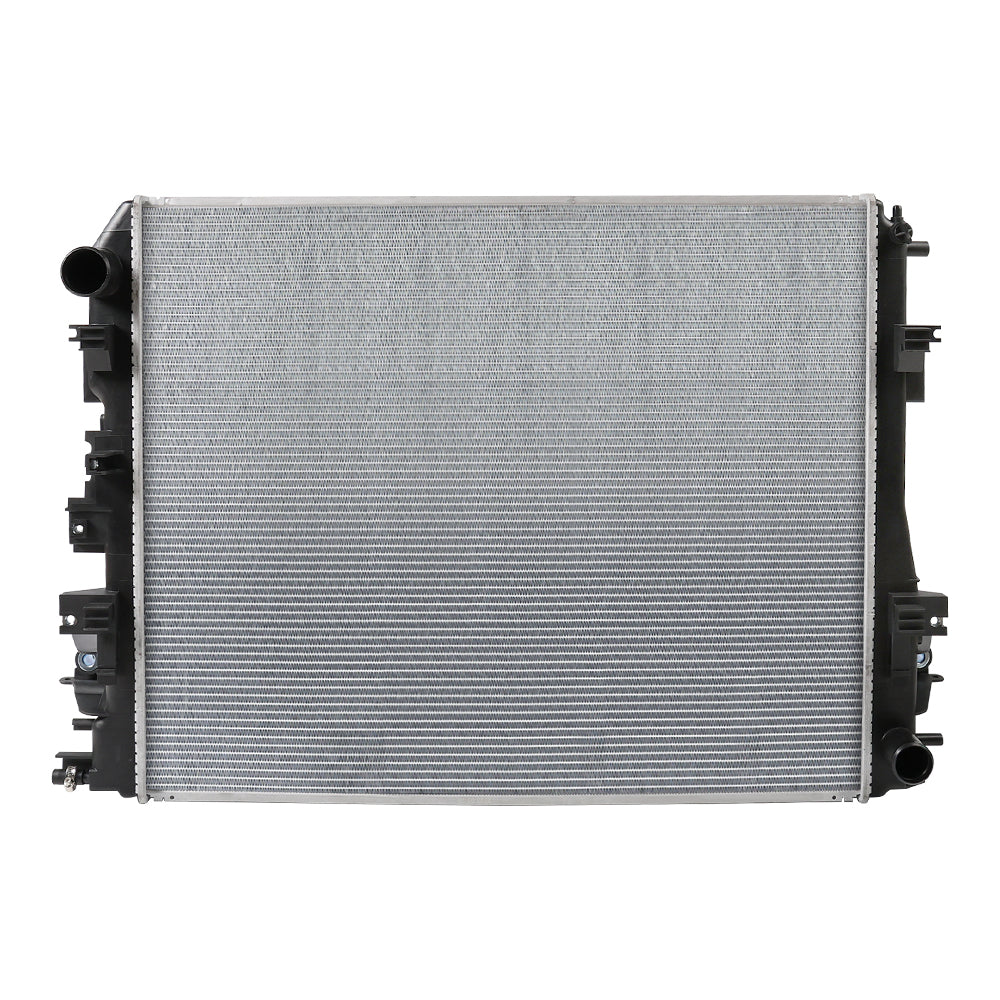

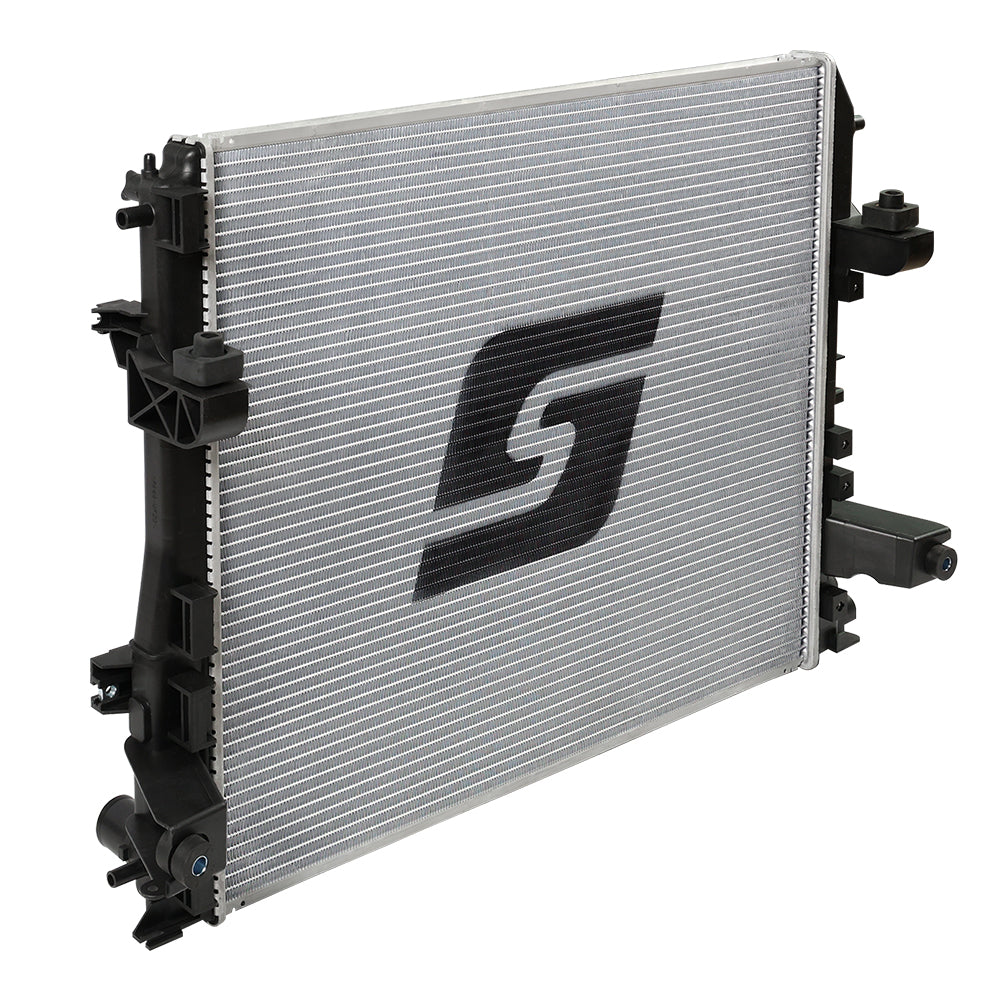

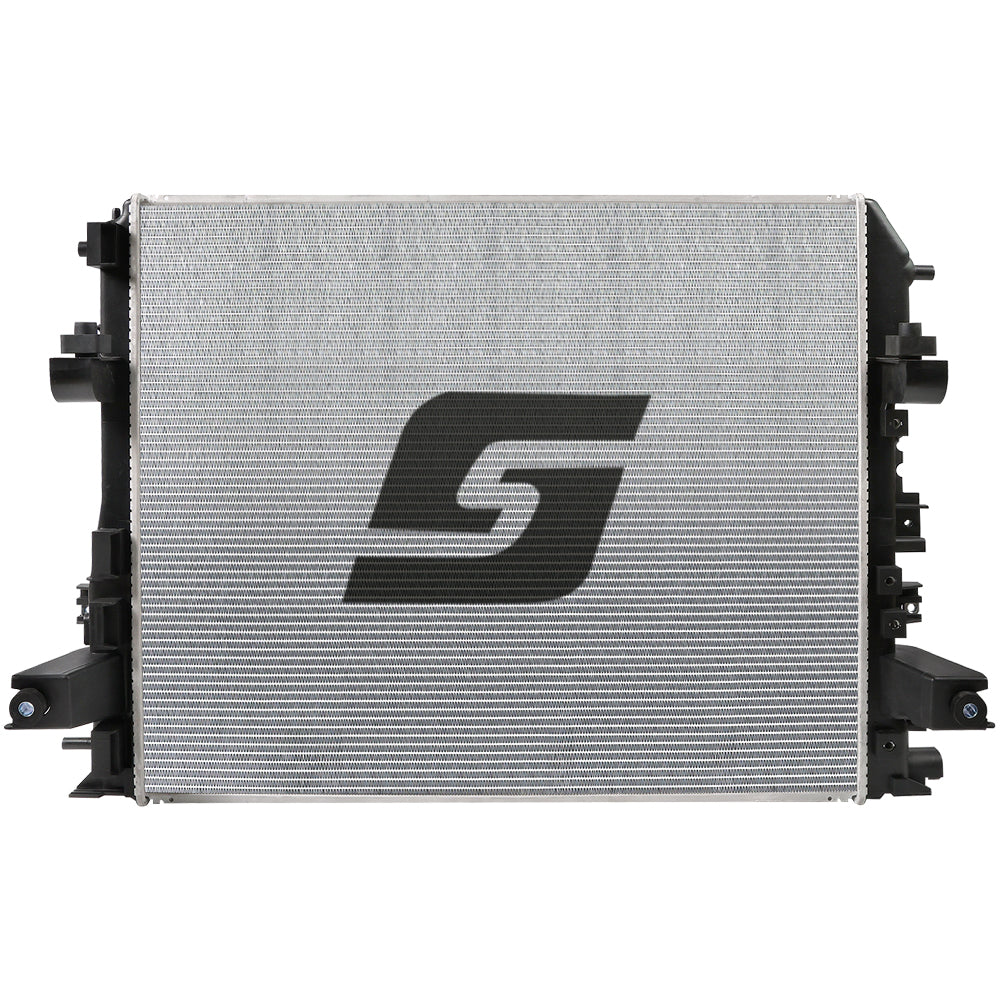

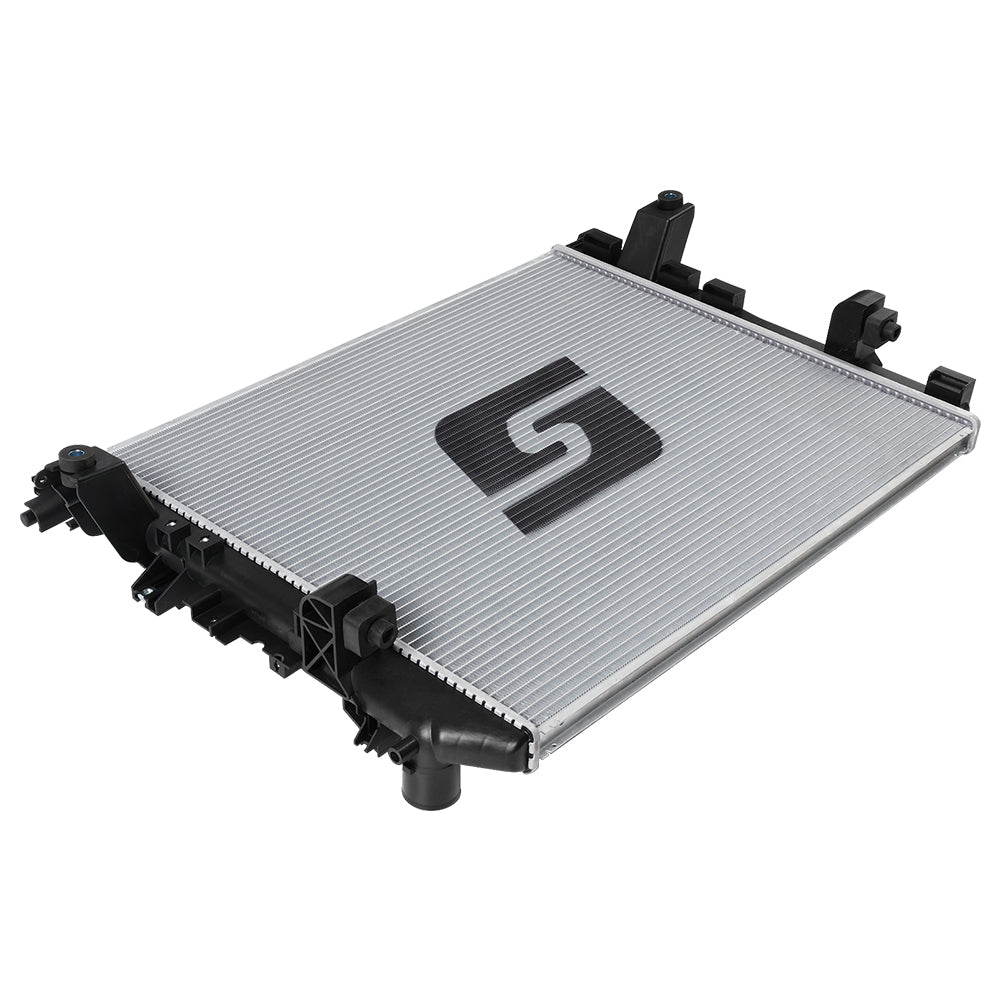

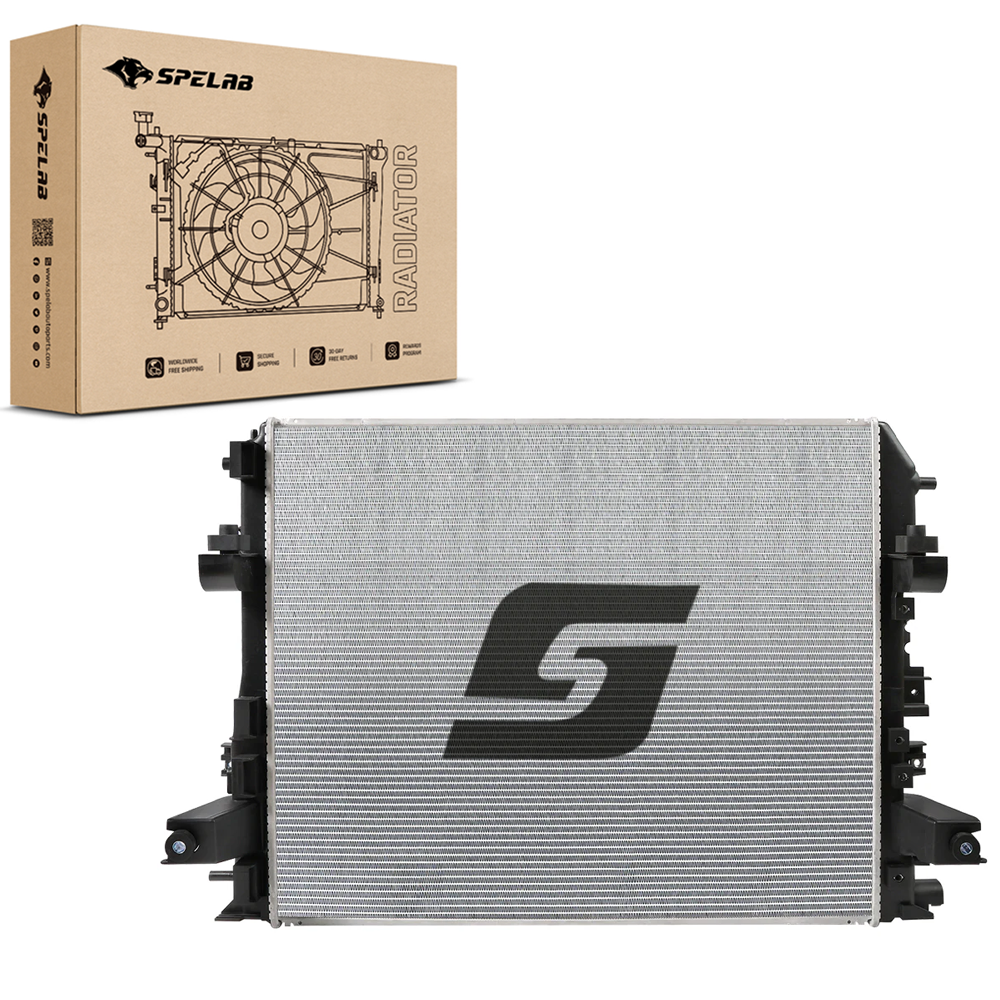

Radiator - Cool Direct-Fit Performance 2014-2019 3.0L Ram 1500 EcoDiesel V6 Turbocharged | SPELAB

  • Brand: SPELAB
  • SKU: SPCS08097
  • Availability: Many in stock
  • Product Type: Radiator

Regular price $147.99
Quantity In stock
Secure and trusted checkout with
paypalvisaapple paymasteramerican expressdiscoverjcbdiners clubgoogle pay
Radiator - 2014-2019 3.0L EcoDiesel Ram 1500 | SPELAB

Radiator - 2014 2015 2016 2017 2018 2019 3.0L EcoDiesel Ram 1500 | SPELAB

Don't just replace the failed radiator in your 2014-2019 3.0L Ecodiesel with a stock replacement, upgrade it with the SPELAB Radiator #CS08097. Designed for a simple bolt-on installation, SPELAB's Radiators look like a factory replacement, but are upgraded to be stronger and better than the factory unit. The SPELAB Cool Radiators are built to give you a long-lasting direct-fit option to protect your engine and cooling system.

Details:

  • Brand: SPELAB
  • SKU: SPCS08097
  • Color: Black
  • Type: Radiator for 2014 2015 2016 2017 2018 2019 Ram 1500 3.0L EcoDiesel
  • Engine: 3.0L V6 Turbocharged



Fitment Guide:

  • 2014-2019 Ram 1500 w/ 3.0L EcoDiesel



TECH SPECS :

  • Bottom Hose Fitting (in): 1 3/4 Right
  • Top Hose Ftting (in):1 1/2 Left
  • Core Length (in): 27 1/2
  • Core Material: Aluminum .
  • Core Thickness (in): 1 1/4
  • Core Width (in): 2111/16
  • Cross-flow/ Down-flow: Cross Flow
  • Hazardous Material: No
  • Inlet Length (in): 2211/16
  • Inlet Width (in): 1 5/8
  • No. Of Rows: 1
  • Outlet Length (in): 22 11/16
  • Outlet Width (in): 1 5/8
  • Radiator Cap Supplied: No
  • Tank Material: Plastic
  • Tech Note: 0.E.M. Style Plastic Tanks & Aluminum Core



      Features:

      High Efficiency Core
      The SPELAB Cool Radiator is built with a high-efficiency core that has more fins per inch, and heavy-duty tubes to maximize cooling potential.

      Internal Reinforcements
      Manufactured using special aluminum brazing techniques, the SPELAB Cool Radiator Features internally reinforced end tubes that have additional strength at the outside corners where the core is most vulnerable.

      Gasket Design
      Using a proprietary rubber gasket to allow for expansion, contraction, and flex is one more reason the SPELAB Cool Radiators are built to last. The gasket is a common failure point in many OE radiator designs.

      Revised End Tanks
      For added strength and durability the SPELAB Cool Radiators feature revised end tanks. With reinforcement ribs added to weak points, the plastic mix includes a fiber reinforcement that is added during construction to increase longevity and help eliminate another failure point.

      Upgraded Mounting Points
      To make sure the SPELAB Cool Radiator is securely mounted in the same location as your stock radiator, the integrated mounting points have been strengthened to add durability.
