4"/5" 2011-2025 Ford 6.7 Powerstroke DPF Delete Race Pipe w/Muffler Exhaust | SPELAB

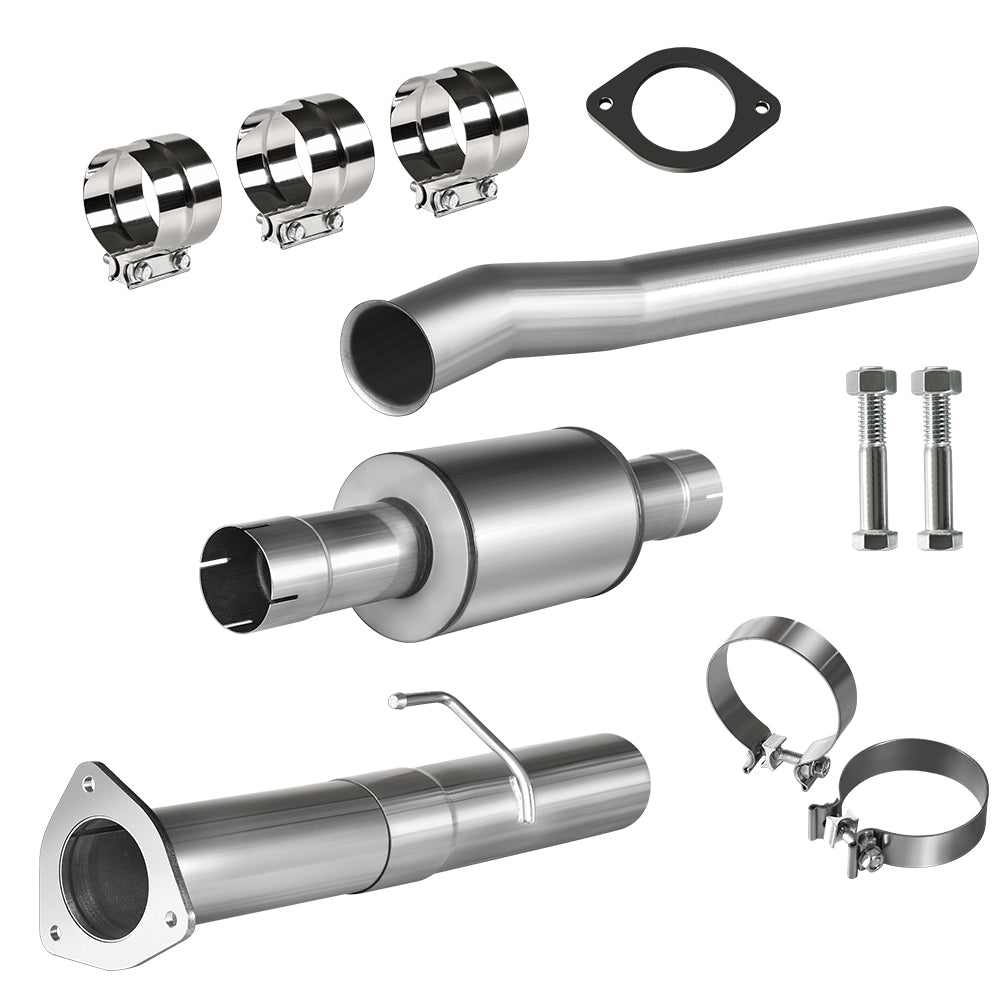

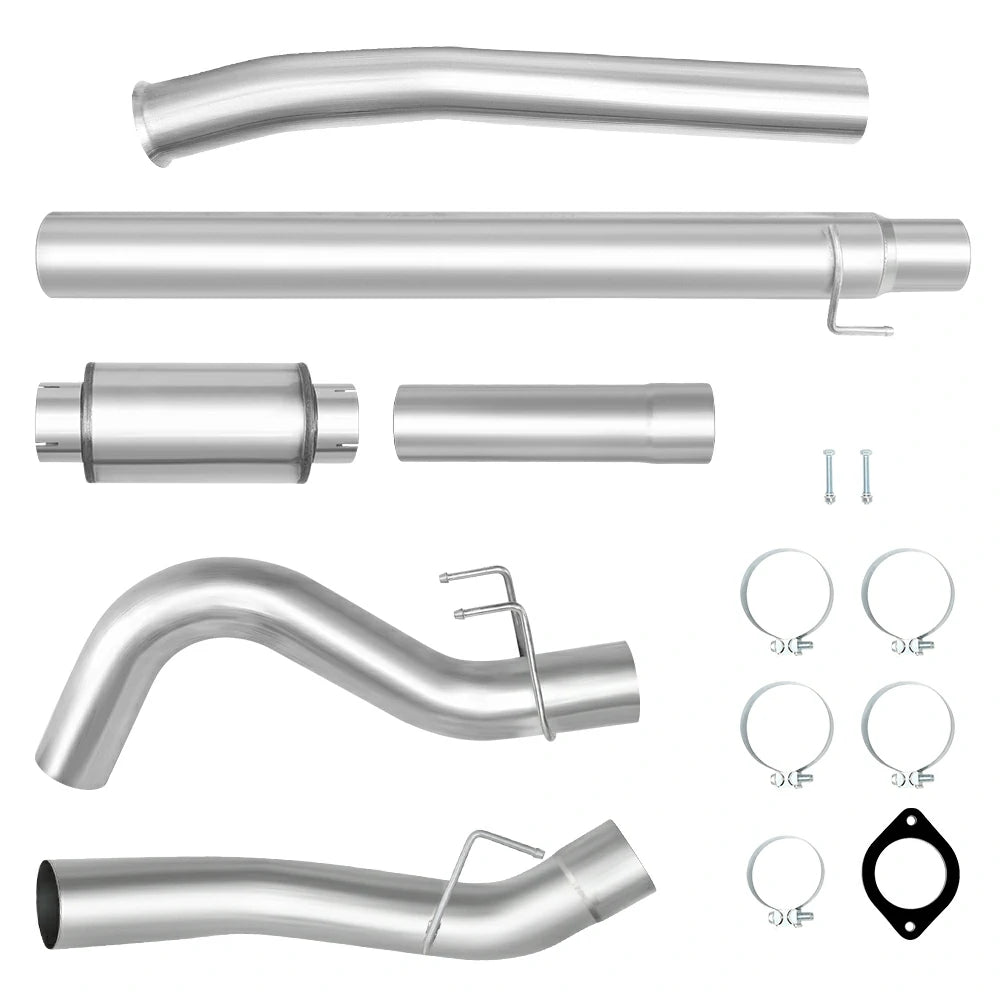

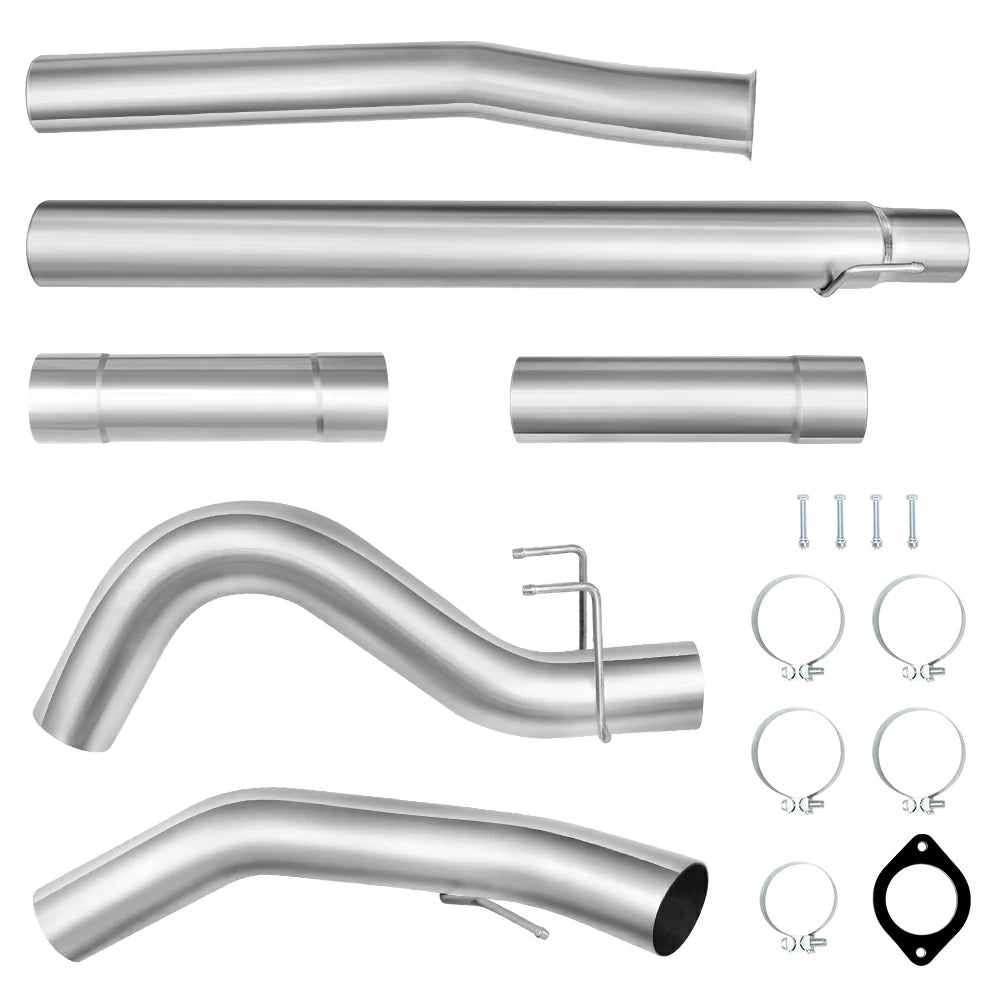

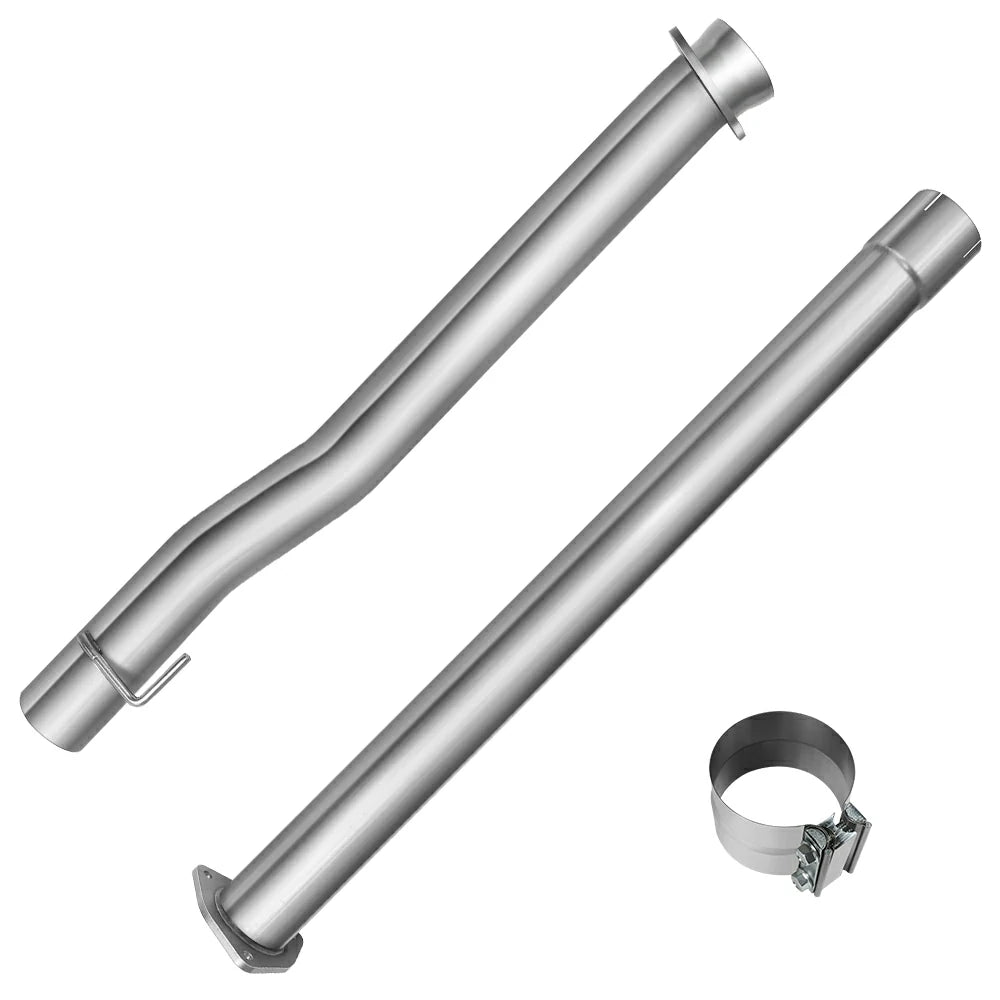

SPELAB 4"/5" 2011-2025 Ford 6.7 Powerstroke DPF Delete Race Pipe w/Muffler Exhaust

Type：

2011-2017 4'' Stainless Steel Cat & DPF Delete/Race Pipe（4''(2011-2017)） : If additional purchase is available, more than 50 in stock.

2011-2019 4'' Stainless Steel Cat & DPF Delete/Race Pipe（4''(2011-2025)）: Compared with the DPF pipe of 11-17 years, it is longer. If additional purchase is available, more than 50 in stock.

2020-2025 4'' Stainless Steel Cat & DPF Delete/Race Pipe（4''(2020-2025)） : If additional purchase is available, more than 50 in stock.

2011-2016 4'' Stainless Steel Cat & DPF Delete/Race Pipe w/Muffler（4'' w/Muffler 2011-2016） : If additional purchase is available, more than 50 in stock.

2011-2019 4'' Stainless Steel Cat & DPF Delete/Race Pipe w/Muffler（4'' w/Muffler 2011-2025） : If additional purchase is available, more than 50 in stock.

4" Downpipe-Back Include DPF Delete/Race Pipe Exhaust System（4'' Dp-Back (2011-2025)） : If additional purchase is available, more than 50 in stock.

5" Downpipe-Back Include DPF Delete/Race Pipe Exhaust System（5'' Dp-Back (2011-2025)） : If additional purchase is available, more than 50 in stock.

5" Downpipe-Back Include DPF Delete/Race Pipe w/Muffler Exhaust System（5'' Dp-Back w/Muffler (2011-2025)） : If additional purchase is available, more than 50 in stock.

Vehicle Fitment:

• 2011-2023 Ford F-250 Powerstroke 6.7 Diesel

• 2011-2023 Ford F-350 Powerstroke 6.7 Diesel

4'' DPF Race (SKU: SPES08336)

• 2011-2024 Ford F-250, F-350, F-450 Super Duty trucks
• Does not fit Cab & Chassis

Exhaust Material: T-409 stainless steel. Unlike T-304 Stainless its still magnetic. So if your testing to see if you actually got stainless; beware that a magnet will still stick to it.
Thickness: 2mm
Inlet Diameter: 4.0"/5.0‘’

Number of bolts：

• SPES08336: 5 PCS
• SPES08694S4.0: 2 PCS
• SPES08105M: 2 PCS
• SPES08337: 5 PCS
• SPES08064: 2 PCS
• SPES08693S4.0: 2 PCS
• SPES08111: 2 PCS
• SPES08118: 2 PCS
• SPES08692S5.0: 2 PCS
• SPES08680S5.0: 4 PCS

Related product : SPELAB 5.0" Downpipe-Back DPF & CAT delete exhaust system

📖 Installation Guide Available: 2011-2023 Ford 6.7 Powerstroke DPF Delete kit Installation

What is the DPF and is it worth doing a DPF Delete?

Most post-2007 diesel vehicles are fitted with a Diesel Particulate Filter (DPF) for emissions reasons, however there are a few disadvantages to this device; including constant maintenance and repairs.

Because the DPF clogs up, it increases backpressure. Due to this pressure, the fuel flow is hugely disturbed and slowed down. Therefore, when you remove this filter, the fuel flows much easily and faster, increasing the overall fuel mileage.

Installation:

Install takes about 1hr with basic hand tools done on the ground of your driveway or garage. Quicker if you have automotive style lift. Cutting may be be required to fit shorter wheelbase bed/cab configurations. Clamps, hangers and hardware are included. You may have to re-use some factory hardware.
Tuner Required: Removal of the DPF, CAT, SCR, and/or DOC involves removing and eliminating emission related sensors. A DPF delete capable tuner is required to prevent any check engine light or diagnostic trouble codes from setting.

Benefits: Expect to see a significant increase in fuel mileage. If your DPF is plugged up your probably averaging about 13-14 mpg. More or less depending on the severity of the restriction. After deleting the DPF/CAT expect to get a combined mileage of 18-19 mpg.

• It removes the need to service the DPF at regular intervals (cleaning, replacement)
• A DPF delete will remove the possibility of a DPF failure which could cause expensive diesel repairs
• Due to less exhaust backpressure, the DPF delete increases exhaust flow and therefore increases the performance of your motor!
• Paired with an ECU remap, the DPF delete is proven to increase power and torque for all vehicles
